What holds the panels to the roof or the ground, and keeps them there through a storm. Get the hardware right and the array outlives the weather around it.

12 items

EZ Solar

EZ Solar Rooftop PV J-Box (Asphalt Shingle)

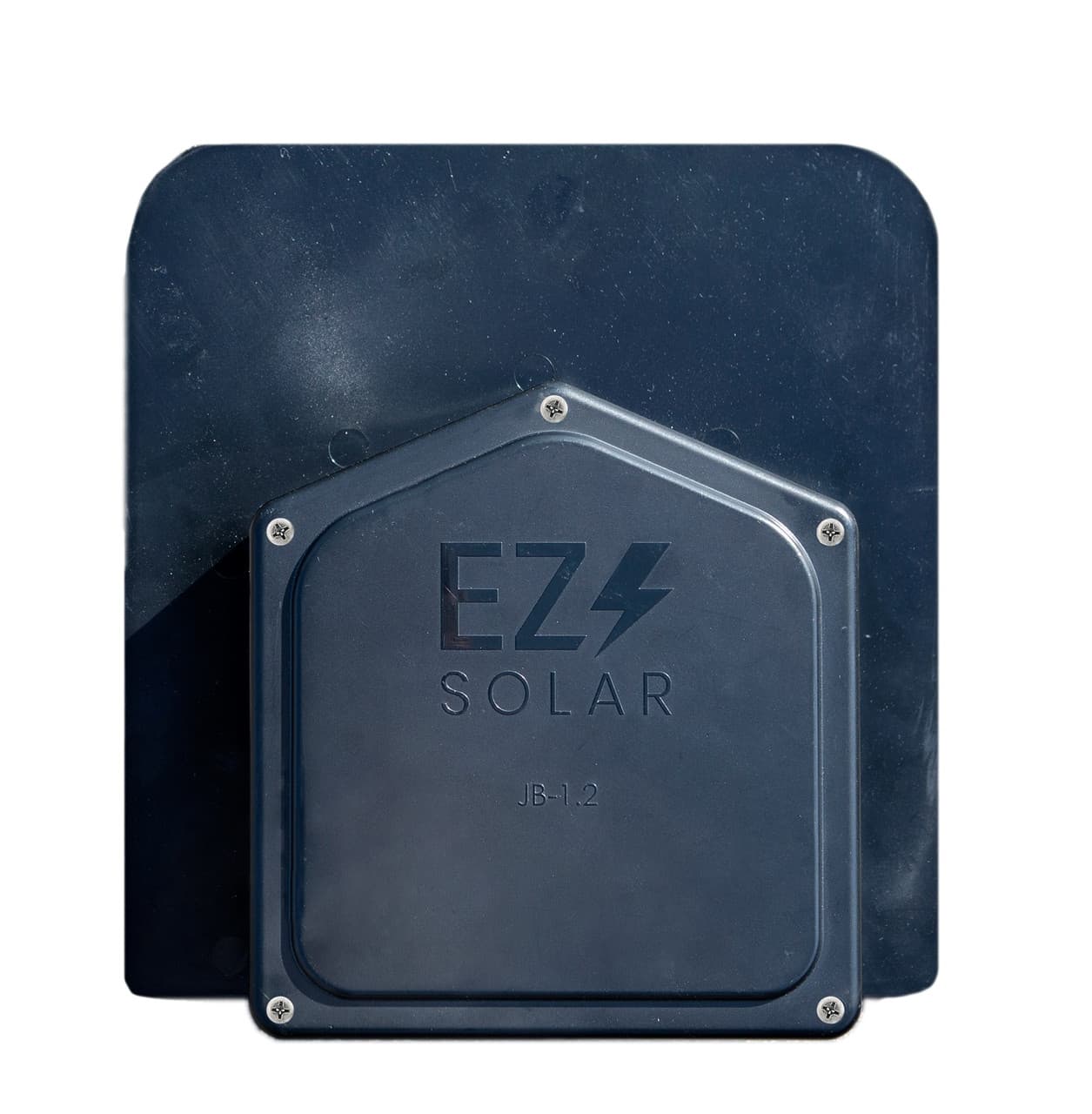

The JB-1.2 is a flashed rooftop junction box for asphalt shingle roofs. Use it as the transition point between your rooftop module conductors and a conduit run heading to the inverter. The polycarbonate box mounts under the shingle with an integrated flashing skirt, so the roof penetration ends up under the next course of shingles and stays watertight. Rated 1000 VDC, 80 A, with a wire range of 14 AWG to 6 AWG. Type 3R enclosure, fits roof slopes from 2.5:12 to 12:12. One inch is the max conduit fitting size on both the side wall and the floor pass-through, which covers EMT, liquidtight, and most flex sizes you'd run on a residential array. Listed to UL1741 and CSA C22.2 No. 290. Operating range from -35°C to +75°C, which covers Gulf coast attic conditions year-round. Worth knowing: EZ Solar has discontinued the JB-1.2 and replaced it with the JB-F.100. The JB-1.2 still works fine on asphalt shingle and matches existing inventory, but for new designs going forward, the JB-F.100 is the newer part to spec.

$54.19View details →

IntegraRack

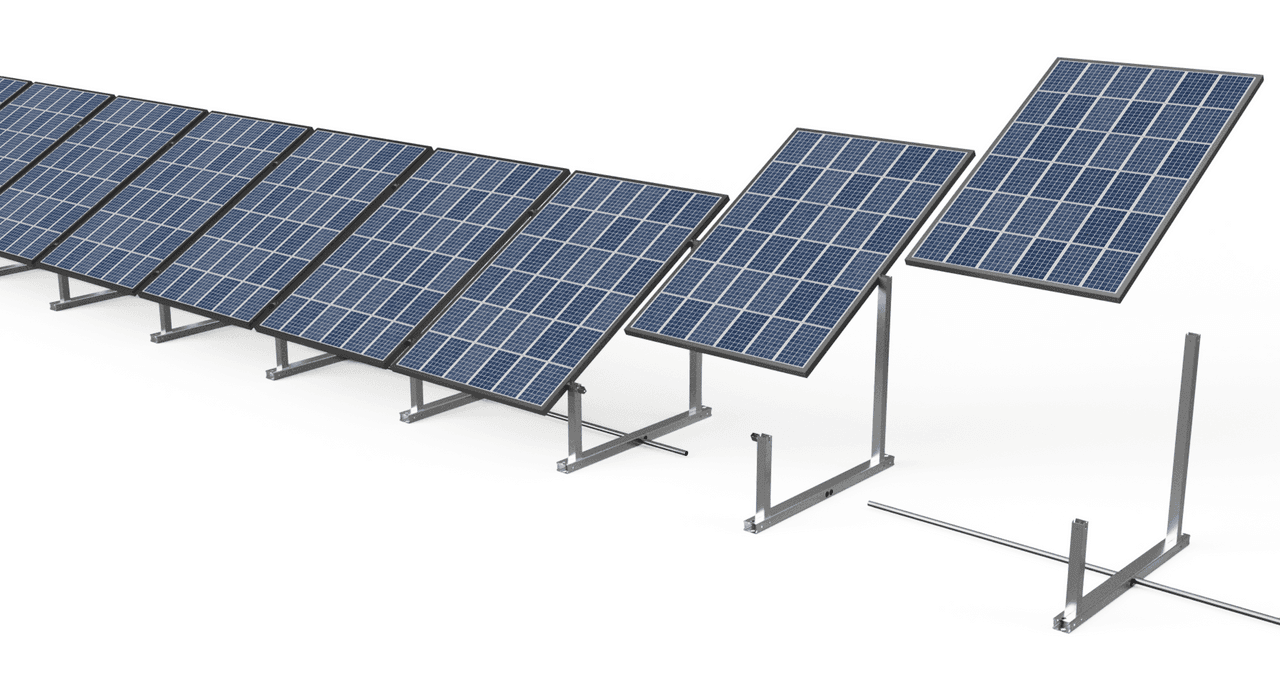

IntegraRack BallastRack Frame IR-30

The IR-30 is a single fixed-tilt ground rack at 30 degrees. One frame holds one module (standard residential up to oversized 800W panels). It's 6061-T6 aluminum, ships in a 5"x5"x48" box at about 10 pounds, and the structural assembly goes together in under 2 minutes. The 30-degree tilt hits a year-round sweet spot for most of the lower 48: enough angle to shed snow in winter, not so much you lose summer production. The module slides up and down the frame for ground clearance, so you can clear tall grass, brush, or sand drift without redesigning the rack. You can anchor it four ways: EarthBallast pans (concrete blocks set on the soil), AnchorSpike for soft ground, drilled concrete anchors for slab, or IntegraRack EarthScrews for dense compacted soil. The EarthScrews are the fastest of the four on most sites; we stock those too. Engineered for 150 mph wind and 100 psf snow at the design level. UL 2703 listed for mechanical and bonding. Pairs with most standard solar modules without special hardware kits.

$125View details →

IntegraRack

IntegraRack EarthScrew

EarthScrews are the fastest way to anchor an IntegraRack BallastRack frame to dense compacted soil. Drive each 30-inch screw with a standard impact wrench, set the frame leg over the screw head, level the array. No concrete, no curing, no pouring sand. One 10-pack anchors 5 BallastRack frames (2 EarthScrews per frame). Each screw is rated for up to 1,000 lbs of uplift. Test one on-site first to confirm the soil holds; IntegraRack recommends a 1,000 lb pull test before committing to the whole array. These need dense compacted soil with frost depth under 20 inches. They won't work in silty sand, soft fill, or rocky terrain. For extremely dense ground, pre-drill with a 30" SDS-Max carbide bit and add concrete mix to the hole for extra grip. A nice install detail: the screws allow vertical adjustment after they're driven, so you can level the array on slightly uneven ground without re-driving anything. Heavy-duty steel, built to outlast the modules above them.

$15View details →

IronRidge

Iron Ridge Bonded Splice

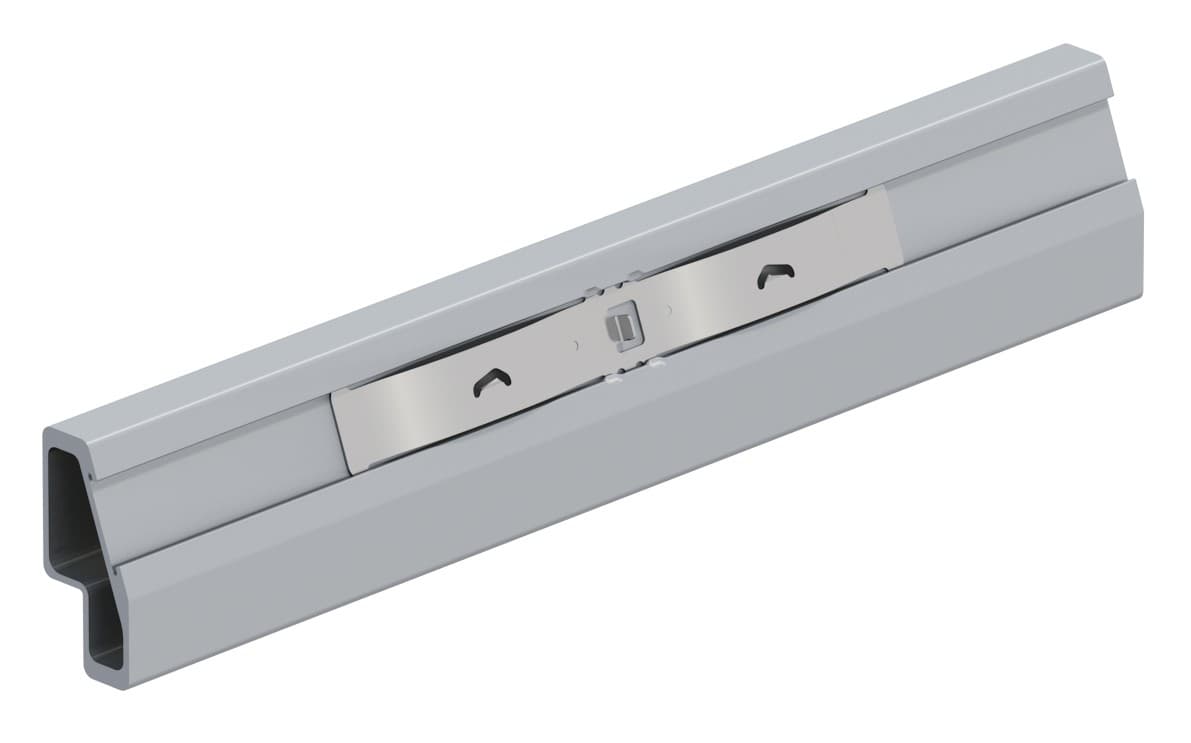

The BOSS is the splice that connects two XR rails into one continuous run. Drop it into the end of the first rail, slide the second rail over it, done. No bolts, no tools, no separate grounding strap. Built-in bonding teeth bite the inside of the rail and create a UL 2703-listed electrical bond across the joint. It's a single-piece splice with a self-centering stop tab, so you get a tactile click when the two rails are properly seated. That means you can confirm the joint from a ladder without breaking out a tape measure. The BOSS works anywhere along the rail span, except outside cantilevers. Leave a 1" gap at thermal expansion joints; no bonding straps required, the BOSS handles continuity even across the gap. This splice is sized for the XR100 rail. IronRidge makes BOSS splices for XR10 and XR1000 as well; this listing is the XR100 size.

$9.06View details →

IronRidge

Iron Ridge HUG (No fasteners)

The HUG is IronRidge's flashing-free comp shingle mount. A cast aluminum halo presses an industrial foam-and-mastic seal flat against the shingle, sealing around the screw without prying or replacing the shingle above. Faster than traditional flash-and-flash mounts, and it works on bonded asphalt courses where lifting shingles can crack them. The seal conforms to the shingle surface and bridges step-downs up to 1/8". CertainTeed and Owens Corning have both approved HUG under their roof warranties. It's UL 2703A listed for flashing performance, and Florida Product Approval #41858 covers it under the FBC. This SKU is the HUG body only, no fasteners included. Pair it with the IronRidge RD Structural Screw (also stocked here) to anchor through the deck, the rafter, or both. The RD screw passes through HUG's center channel and finishes the waterproof stack with an EPDM washer at the head. Mount HUG into the rafter or the deck per the installation manual. Torque per IronRidge's spec; HUG is rated for the XR rail family and the FlashFoot2 / L-foot footprint.

$11.8View details →

IronRidge

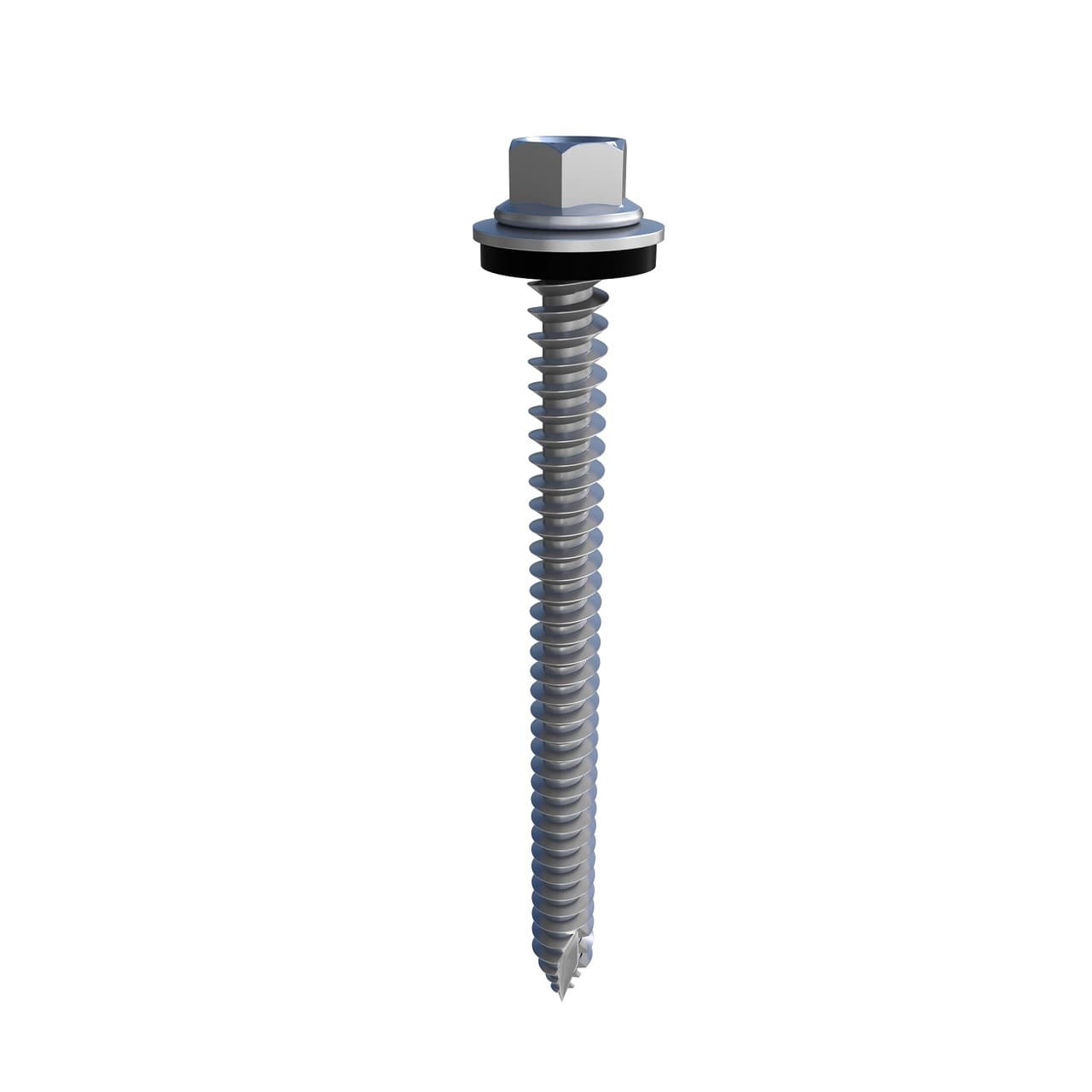

Iron Ridge RD Structural Screw 3.0L

The RD is the structural screw that finishes the IronRidge HUG attachment. A #14 self-drilling wood-tip screw in 300-series stainless steel with a clear finish, 3" long, with a 5/16" head and an EPDM-backed sealing washer pre-loaded under the head. Self-drilling means no pilot hole on most rafters. The stainless body resists corrosion in coastal and high-humidity environments, which matters on the Gulf coast and anywhere salt air gets to the underside of the roof deck. The "RD" stands for rafter-or-deck. The screw is engineered to anchor HUG into a rafter for full structural pullout, into the deck where rafter spacing forces it, or through both layers. Either way, the EPDM washer compresses against the HUG halo to complete the waterproof stack. You'll need one RD per HUG attachment, so order them in matching quantities. Sold individually here, not as a kit.

$0.96View details →

IronRidge

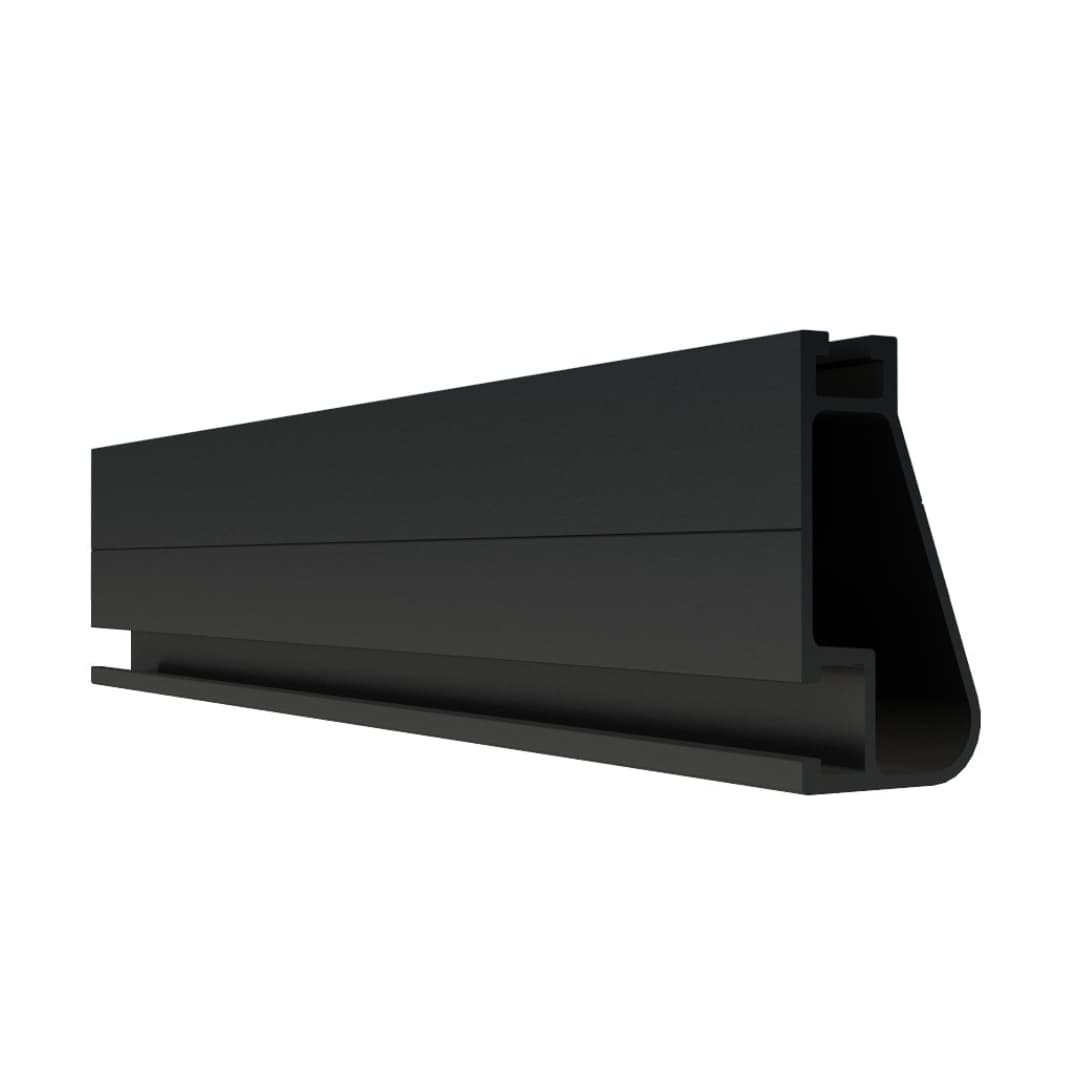

Iron Ridge XR-100-168 Rail

The XR100 is IronRidge's residential workhorse rail. It's a curved 6000-series aluminum extrusion that spans up to 8 feet between roof attachments, which usually cuts the number of penetrations you have to flash. The 168" length comes out to 14 feet of rail per stick, so you can run most residential rows with one or two pieces and a splice. The curved profile does real work. It stiffens the rail in both bending directions and resists the twisting that comes with uplift in real wind. This is the black anodized finish, which holds up against UV and salt air and looks right under dark modules. UL 2703 listed. 25-year IronRidge warranty. If your run is longer than a single 14-foot stick, pair these with BOSS bonded splices. The splice slips in, snaps the rails together, and bonds them electrically. No extra grounding hardware on the joint. Compatible with the rest of the IronRidge XR system: FlashFoot2 and HUG attachments, UFO mid clamps, EFO or UFO-END end clamps, and the XR-LUG grounding lug. Spans are rated against ASCE 7-16 for residential flush mounts, gable roofs, exposure B.

$70.45View details →

IronRidge

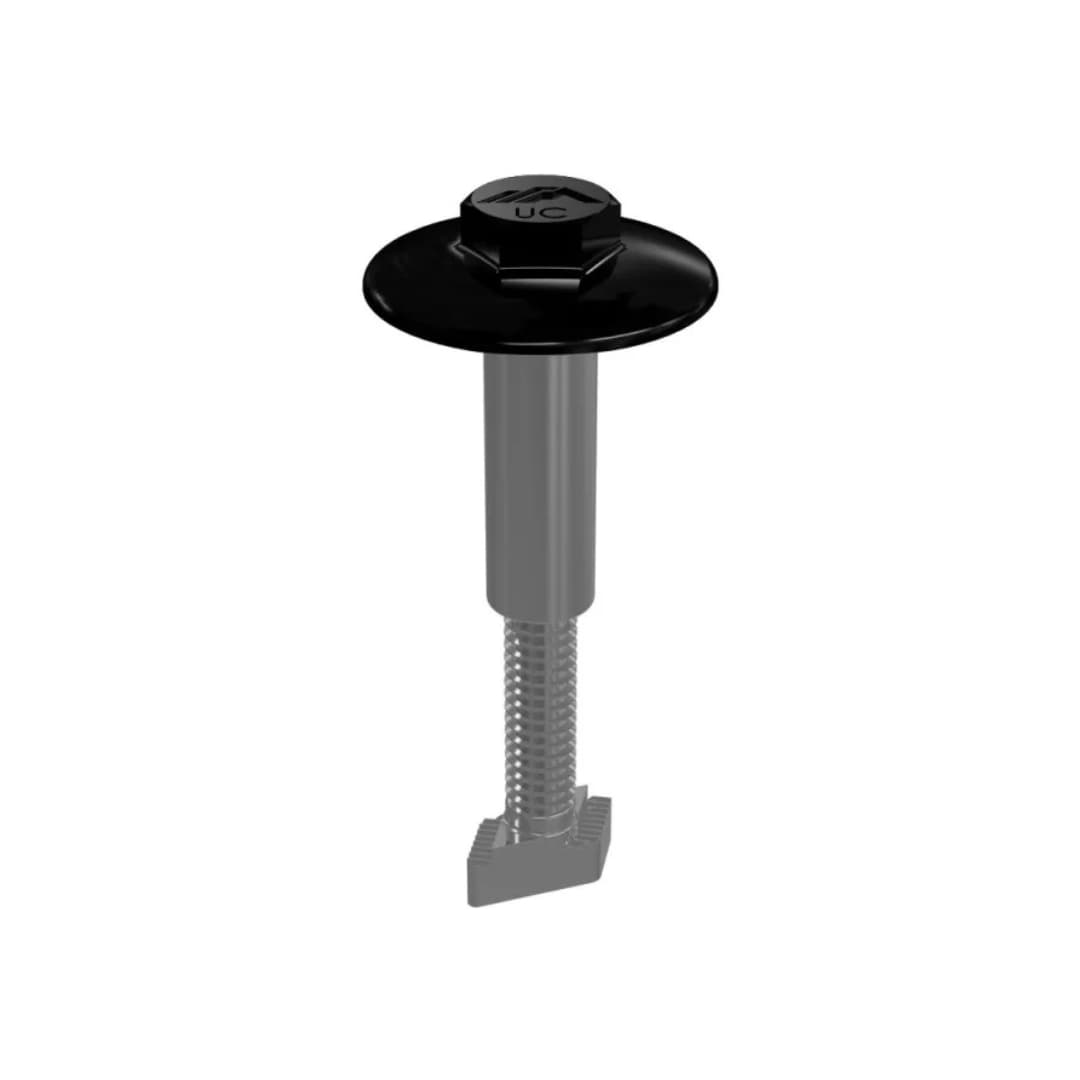

Mid Clamps

The UFO is IronRidge's universal mid clamp. One clamp covers most residential module frame heights, so you don't have to size the clamp to the module. It comes pre-lubricated and pre-assembled in one piece. Drop it into the XR rail T-slot, push the module against it, set the next module, torque. Mid clamps go between modules along the row. Each one bonds the module frame to the rail electrically as part of the IronRidge Integrated Grounding System, UL 2703 listed. That bonding eliminates the need for separate grounding lugs at every module. This clamp is sold individually. A typical residential row uses one mid clamp per module-to-module gap, so a 10-module row needs 9 mid clamps plus 2 end clamps. Order black to match the rails and the module frames on most modern panels. Use the UFO with EFO end clamps at the ends of the row. The UFO / EFO pair is the current IronRidge universal family for the XR system.

$3.94View details →

IronRidge

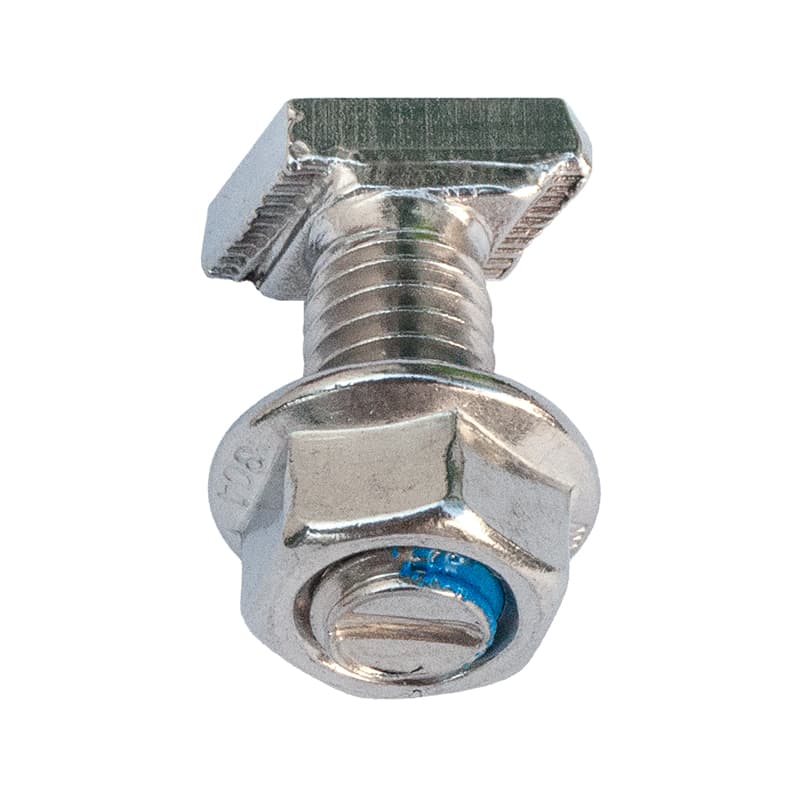

Rail Bolt

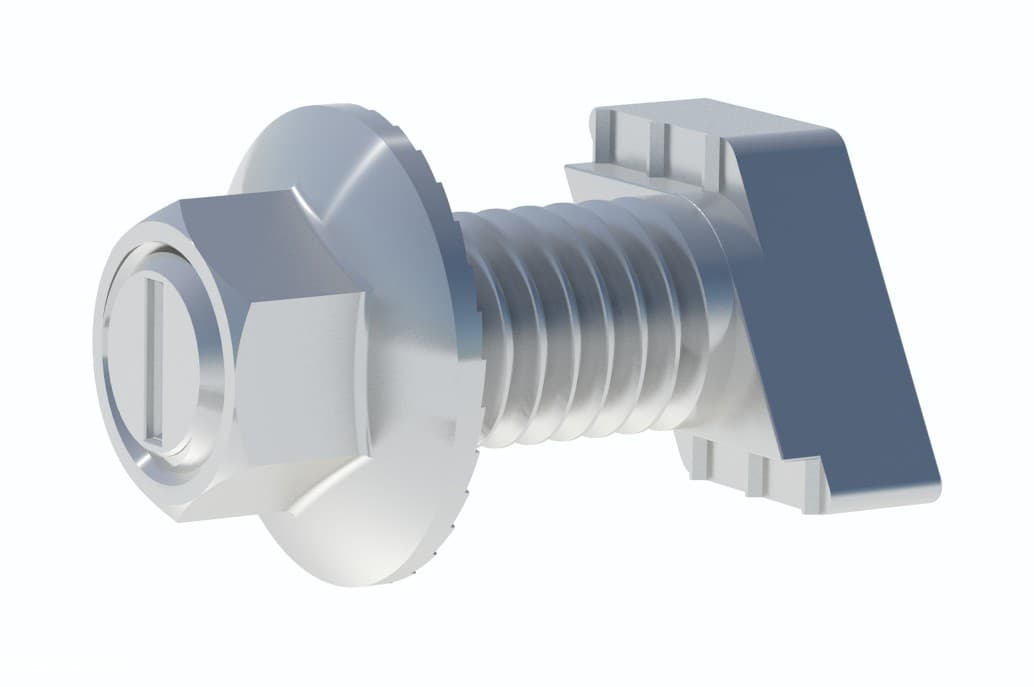

This is the T-bolt that ties an XR rail to a roof attachment. Drop the bolt head into the rail T-slot, set the bonding nut on top, torque to spec. The serrated nut bites into the rail aluminum to create an electrical bond between the rail and the attachment, which means the attachment hardware joins the grounded array without a separate ground strap. The nut takes a 7/16" socket, matching the rest of the IronRidge XR hardware, so you only carry one driver size on the roof. Use one Rail Bolt per attachment point. A typical residential row needs one per FlashFoot2, HUG, or L-foot. Plan accordingly when you size your fastener pack. UL 2703 listed as part of the IronRidge XR system. 25-year IronRidge warranty.

$2.26View details →

S-5!

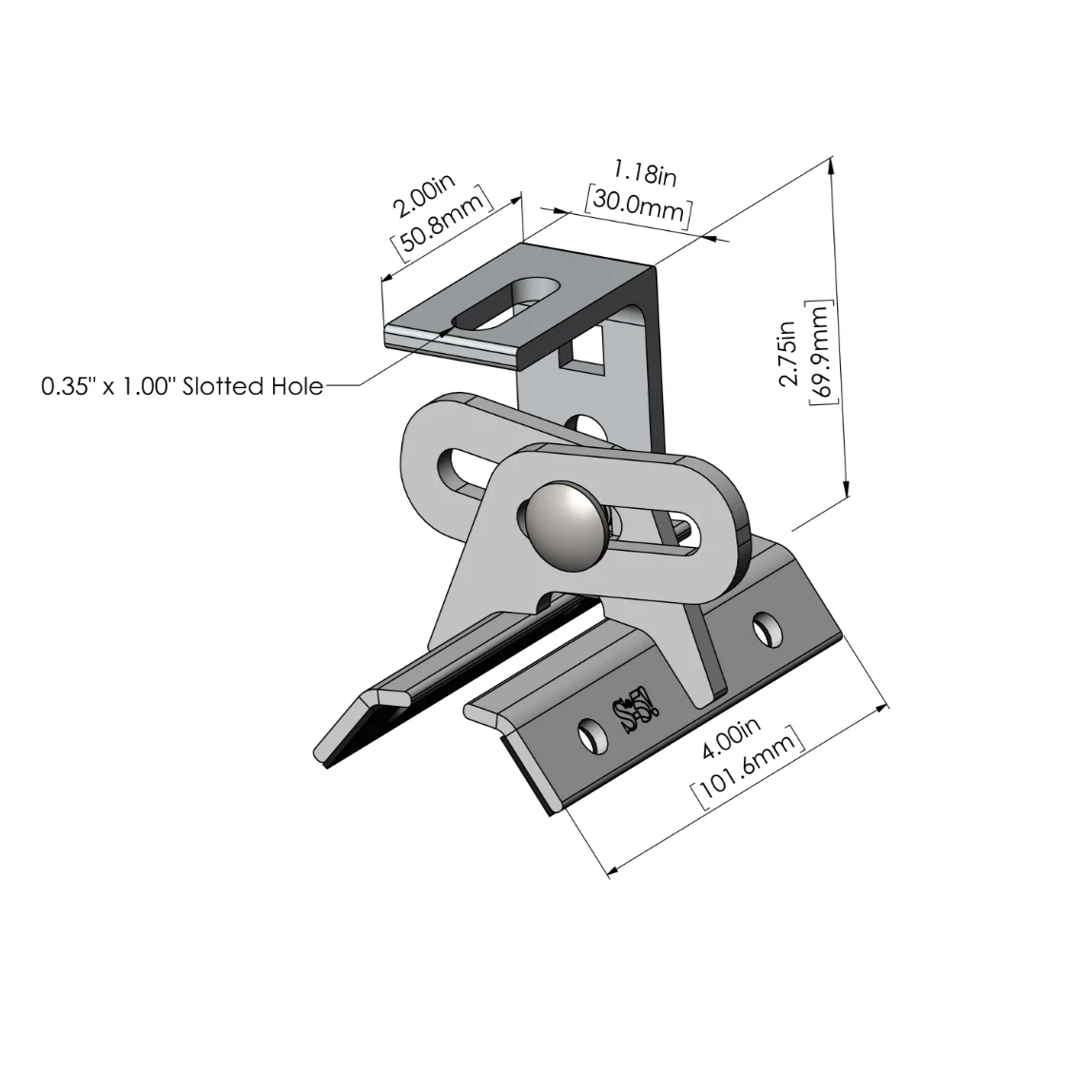

S5 ProteaBracket

The ProteaBracket is S-5's clamp for trapezoidal exposed-fastener metal roofs (the kind with raised ribs and screws showing on top, common on barns, shops, and a lot of pole buildings). It clamps to the side of the rib with stainless-capped screws and seals against the metal with a factory-applied EPDM pad on the underside of the bracket feet. That EPDM pad plus the EPDM washer on the screws gives you a double seal at the rib, with no caulk and no separate flashing. Fast to install, dependable in the rain, and no sealant cure time. Once mounted, the ProteaBracket gives you a flat attachment point for either rails (XR100 fits with the right bolt) or rail-less mounting via the S-5 PVKIT. Pick the bracket location anywhere along the rib outside the lapped joint area; S-5 doesn't recommend mounting on a lapped rib without calling their tech support first. Tested for sheeting-only load-to-failure. Check the load tables if you're in a high-snow region. The bracket is intended for trapezoidal panels, not standing-seam (use the S-5 standing-seam clamps for those).

$13.85View details →

IronRidge

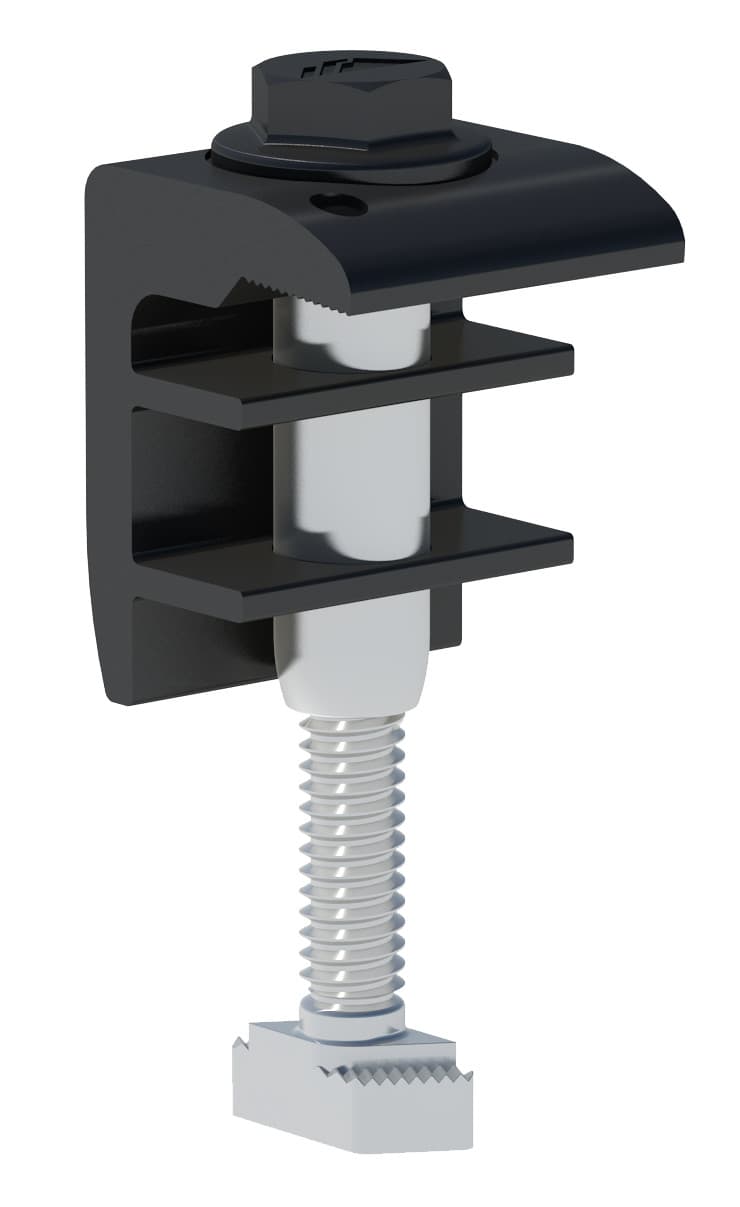

UFO-END-01-A1 (End Clamp)

The UFO-END is the end clamp for the IronRidge XR rail system. It sits at the outside edge of each row where the last module needs to be locked down without a second module pressing against it. Two per row, one at each end. Drop the clamp into the XR rail T-slot, set the end module against it, torque to spec. It bonds the module frame to the rail electrically as part of the IronRidge Integrated Grounding System, so you don't need a separate grounding lug at the row ends. Pair with UFO mid clamps along the rest of the row. The two together cover every module-to-rail attachment in a standard residential install. UL 2703 listed. 25-year IronRidge warranty.

$5.28View details →

IronRidge

XR-LUG-04-A1

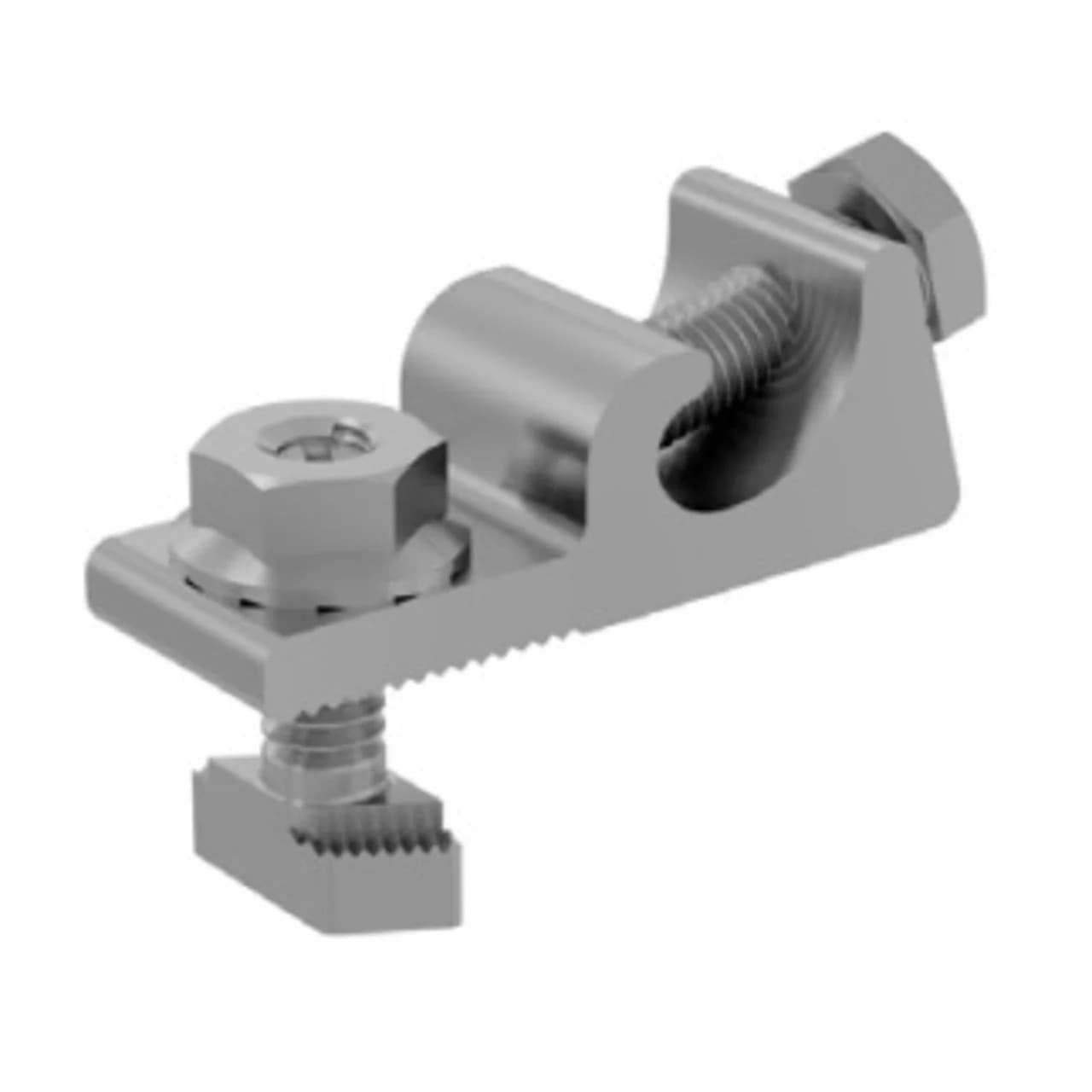

The XR-LUG is the low-profile grounding lug for XR rails. Drop it into the rail T-slot, run your equipment grounding conductor through it, torque. It connects the array's bonded rails to your EGC at a single point per row (or per the layout your inspector signs off on). Most installs run a single 10 AWG copper EGC through the XR-LUG and out to the inverter or combiner ground bus. The lug accepts solid or stranded copper. Even though the UFO mid clamps and BOSS splices already bond rails and modules into the IronRidge Integrated Grounding system, you still need at least one external lug per array to land the EGC. That's what this part does. UL 2703 listed as part of the XR system. 25-year IronRidge warranty.

$8.06View details →
