Mid Clamps
The UFO is IronRidge's universal mid clamp. One clamp covers most residential module frame heights, so you don't have to size the clamp to the module. It comes pre-lubricated and pre-assembled in one piece. Drop it into the XR rail T-slot, push the module against it, set the next module, torque.
In stock and ready to ship.
- Type
- Universal mid clamp (UFO)
- Finish
- Black
- Bonding
- Integrated, no separate ground lug needed
- Listing
- UL 2703
- Sold as
- Individual
- Warranty
- 25-year IronRidge
About this item
The UFO is IronRidge's universal mid clamp. One clamp covers most residential module frame heights, so you don't have to size the clamp to the module. It comes pre-lubricated and pre-assembled in one piece. Drop it into the XR rail T-slot, push the module against it, set the next module, torque.
Mid clamps go between modules along the row. Each one bonds the module frame to the rail electrically as part of the IronRidge Integrated Grounding System, UL 2703 listed. That bonding eliminates the need for separate grounding lugs at every module.
This clamp is sold individually. A typical residential row uses one mid clamp per module-to-module gap, so a 10-module row needs 9 mid clamps plus 2 end clamps. Order black to match the rails and the module frames on most modern panels.
Use the UFO with EFO end clamps at the ends of the row. The UFO / EFO pair is the current IronRidge universal family for the XR system.
More Racking & Mounting

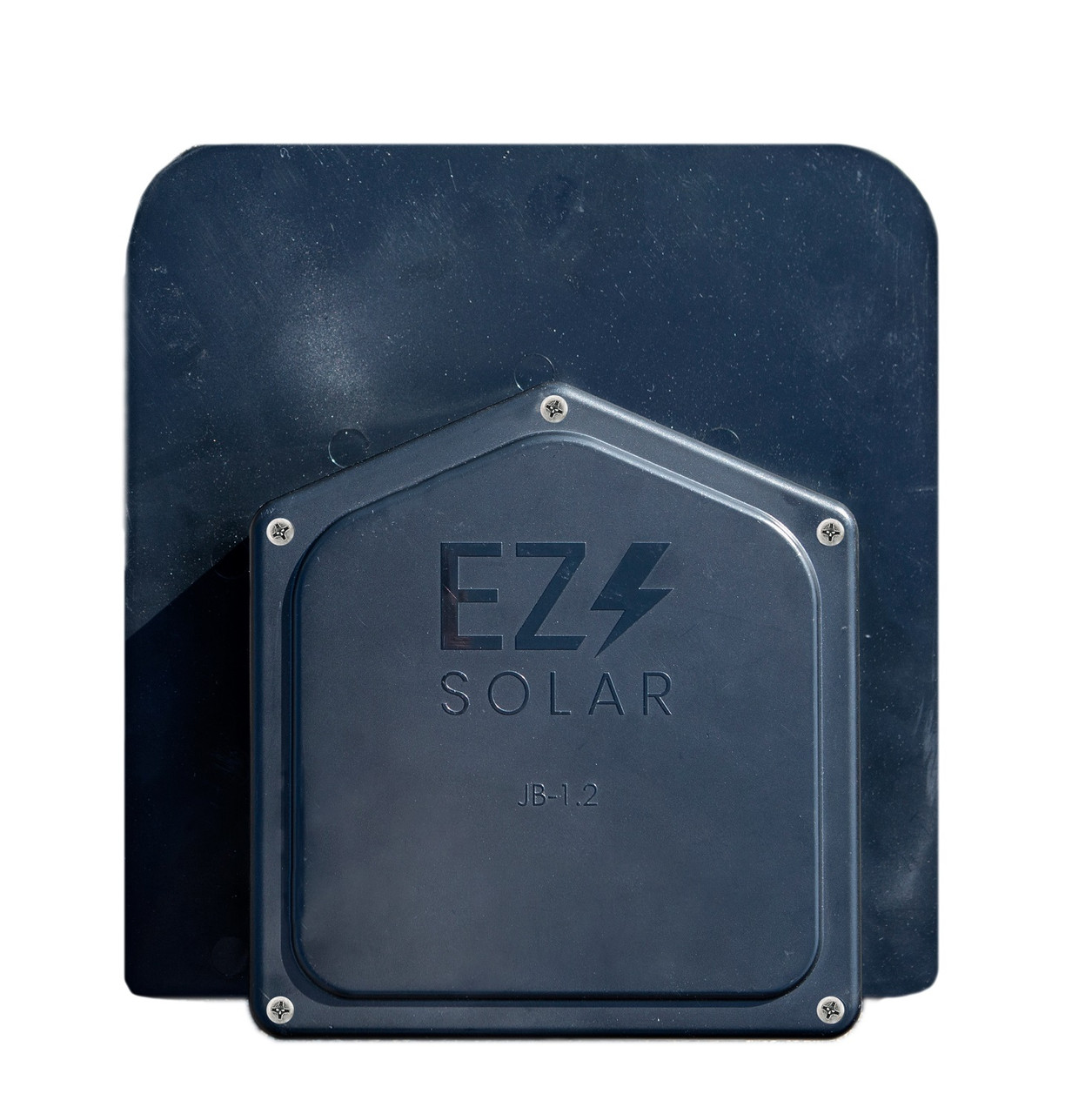

EZ Solar Rooftop PV J-Box (Asphalt Shingle)
The JB-1.2 is a flashed rooftop junction box for asphalt shingle roofs. Use it as the transition point between your rooftop module conductors and a conduit run heading to the inverter. The polycarbonate box mounts under the shingle with an integrated flashing skirt, so the roof penetration ends up under the next course of shingles and stays watertight. Rated 1000 VDC, 80 A, with a wire range of 14 AWG to 6 AWG. Type 3R enclosure, fits roof slopes from 2.5:12 to 12:12. One inch is the max conduit fitting size on both the side wall and the floor pass-through, which covers EMT, liquidtight, and most flex sizes you'd run on a residential array. Listed to UL1741 and CSA C22.2 No. 290. Operating range from -35°C to +75°C, which covers Gulf coast attic conditions year-round. Worth knowing: EZ Solar has discontinued the JB-1.2 and replaced it with the JB-F.100. The JB-1.2 still works fine on asphalt shingle and matches existing inventory, but for new designs going forward, the JB-F.100 is the newer part to spec.
$54.19

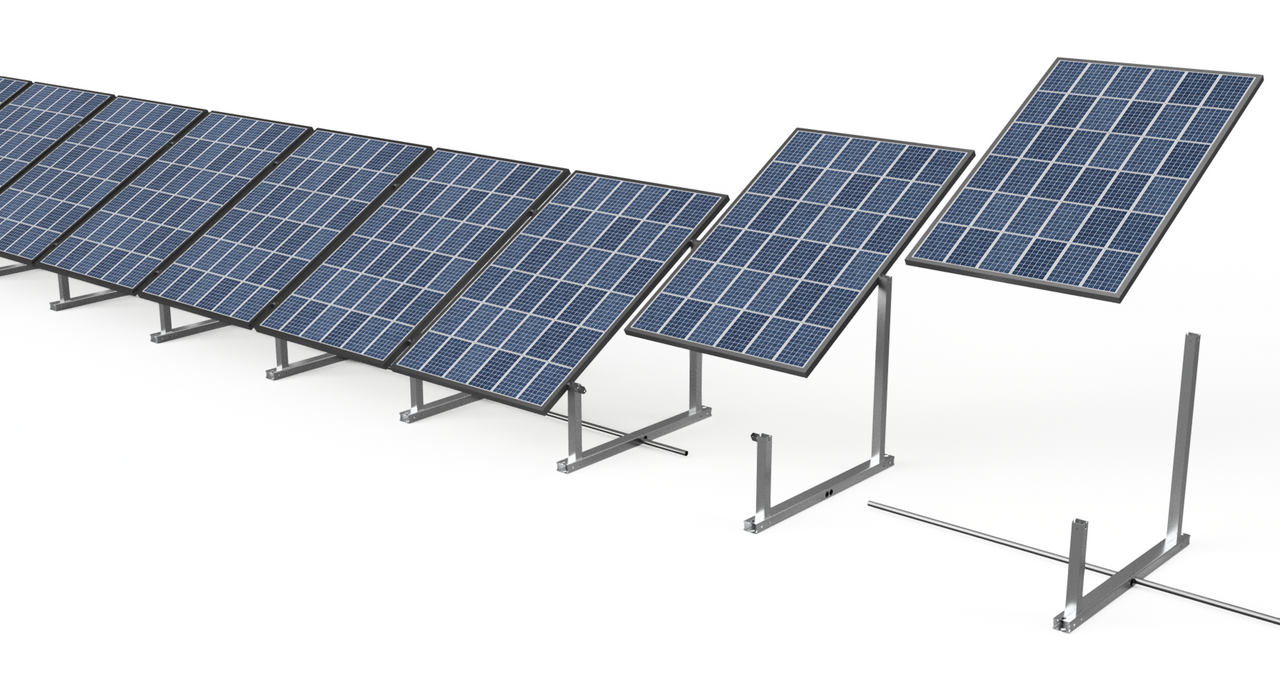

IntegraRack BallastRack Frame IR-30
The IR-30 is a single fixed-tilt ground rack at 30 degrees. One frame holds one module (standard residential up to oversized 800W panels). It's 6061-T6 aluminum, ships in a 5"x5"x48" box at about 10 pounds, and the structural assembly goes together in under 2 minutes. The 30-degree tilt hits a year-round sweet spot for most of the lower 48: enough angle to shed snow in winter, not so much you lose summer production. The module slides up and down the frame for ground clearance, so you can clear tall grass, brush, or sand drift without redesigning the rack. You can anchor it four ways: EarthBallast pans (concrete blocks set on the soil), AnchorSpike for soft ground, drilled concrete anchors for slab, or IntegraRack EarthScrews for dense compacted soil. The EarthScrews are the fastest of the four on most sites; we stock those too. Engineered for 150 mph wind and 100 psf snow at the design level. UL 2703 listed for mechanical and bonding. Pairs with most standard solar modules without special hardware kits.
$125

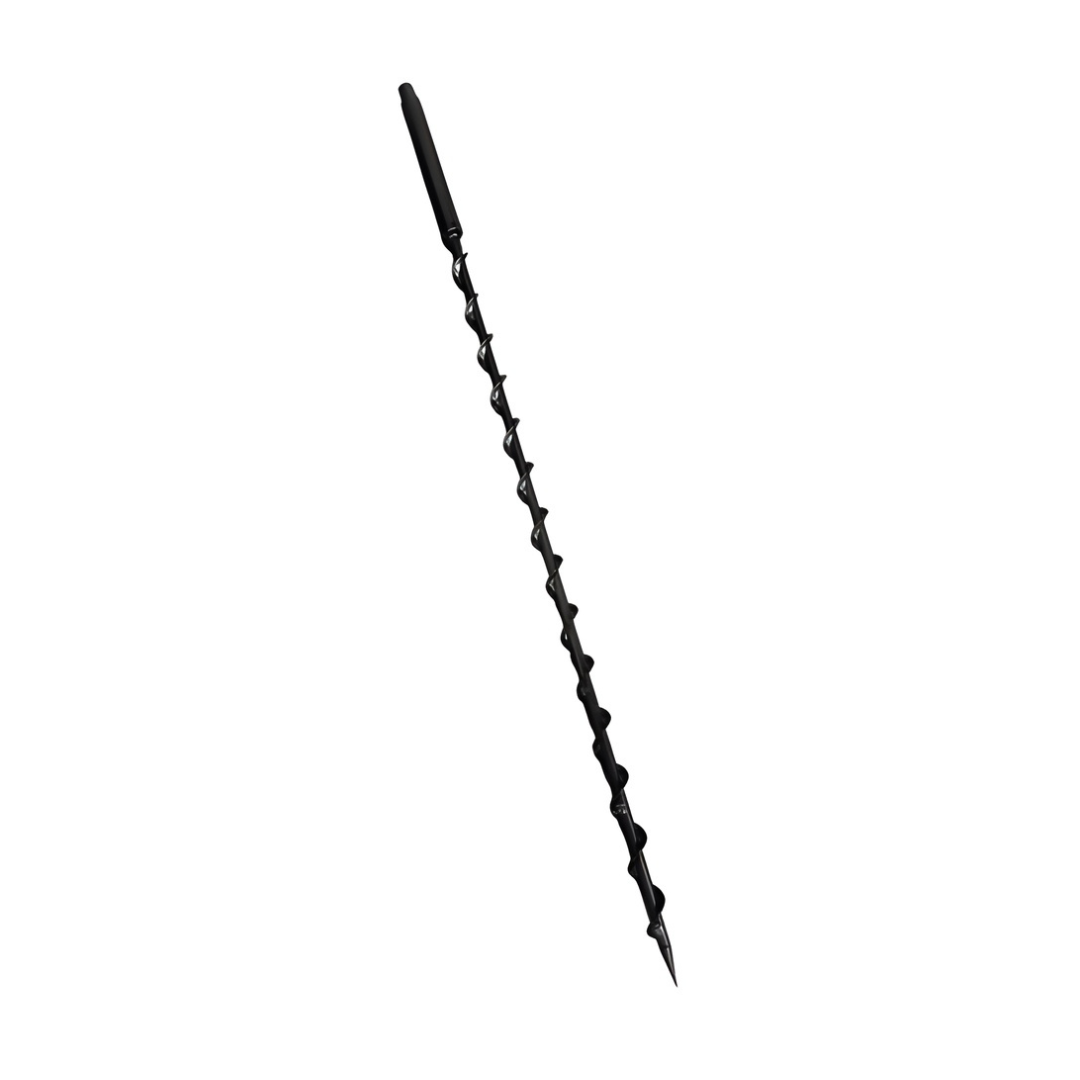

IntegraRack EarthScrew
