IntegraRack BallastRack Frame IR-30

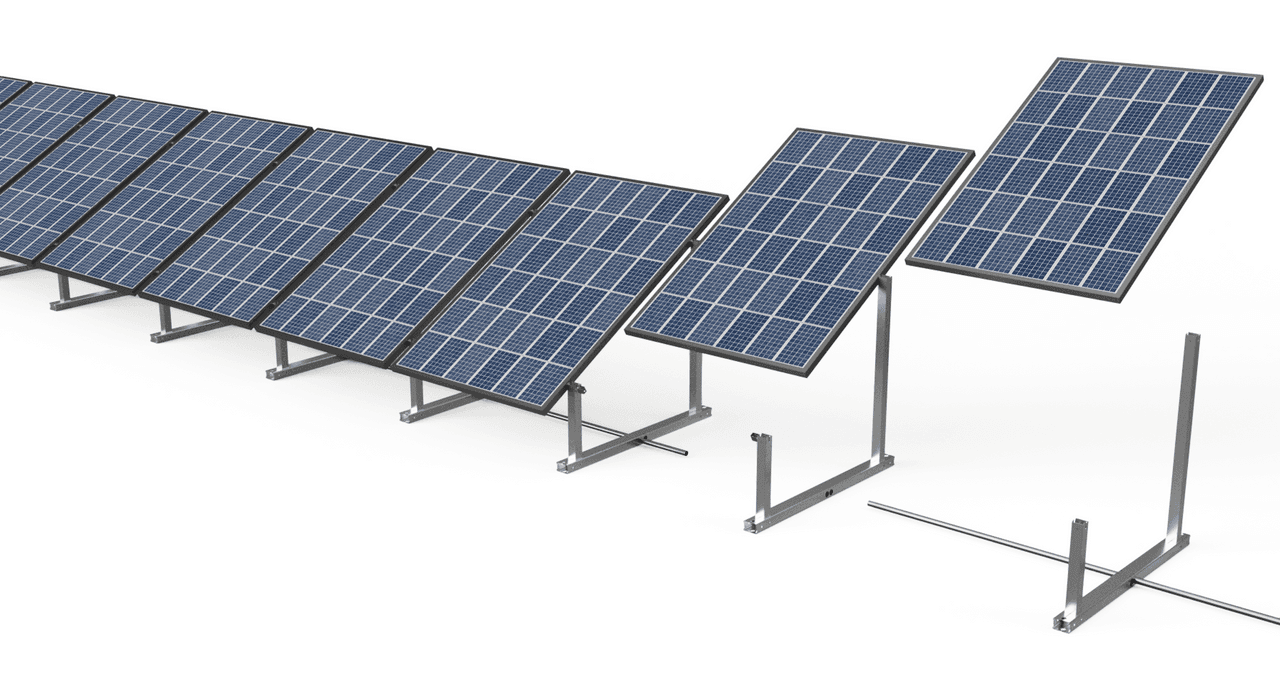

The IR-30 holds your panels at a fixed 30 degrees, the angle IntegraRack picked for year-round production across most of the continental US. Each panel mounts between two frames, so a row takes one frame per panel plus one to start it (six panels, seven frames). The frame is 6061-T6 aluminum, weighs 10 pounds, and with panels up to 24 square feet it's rated for 100 psf of snow and 120 mph of wind on EarthBallast or EarthScrews, or 150 mph on SlabBallast. Unless you bolt it to concrete, you'll also need 1 inch EMT conduit from the hardware store to connect and space the frames, and IntegraRack backs the frame with a 25 year limited warranty.
Currently out of stock. Contact us for lead time.
5.036 Google reviews- Tilt
- 30 degrees fixed
- Model
- IR-30RF1030
- Weight
- 10 lb per frame section
- Included
- Base tube, short leg, long leg, 4 IR-F2 flange clamp bonding brackets, 4 Bolt A, 4 Nut A, 4 Bolt B (per frame)
- Material
- 6061-T6 aluminum tube (2 x 2 in legs, 3 x 2 in base tube)
- Ship box
- 5 x 5 x 48 in, about 10 lb boxed
About this item
The IR-30 holds your panels at a fixed 30 degrees, the angle IntegraRack picked for year-round production across most of the continental US. Each panel mounts between two frames, so a row takes one frame per panel plus one to start it (six panels, seven frames). The frame is 6061-T6 aluminum, weighs 10 pounds, and with panels up to 24 square feet it's rated for 100 psf of snow and 120 mph of wind on EarthBallast or EarthScrews, or 150 mph on SlabBallast. Unless you bolt it to concrete, you'll also need 1 inch EMT conduit from the hardware store to connect and space the frames, and IntegraRack backs the frame with a 25 year limited warranty.
