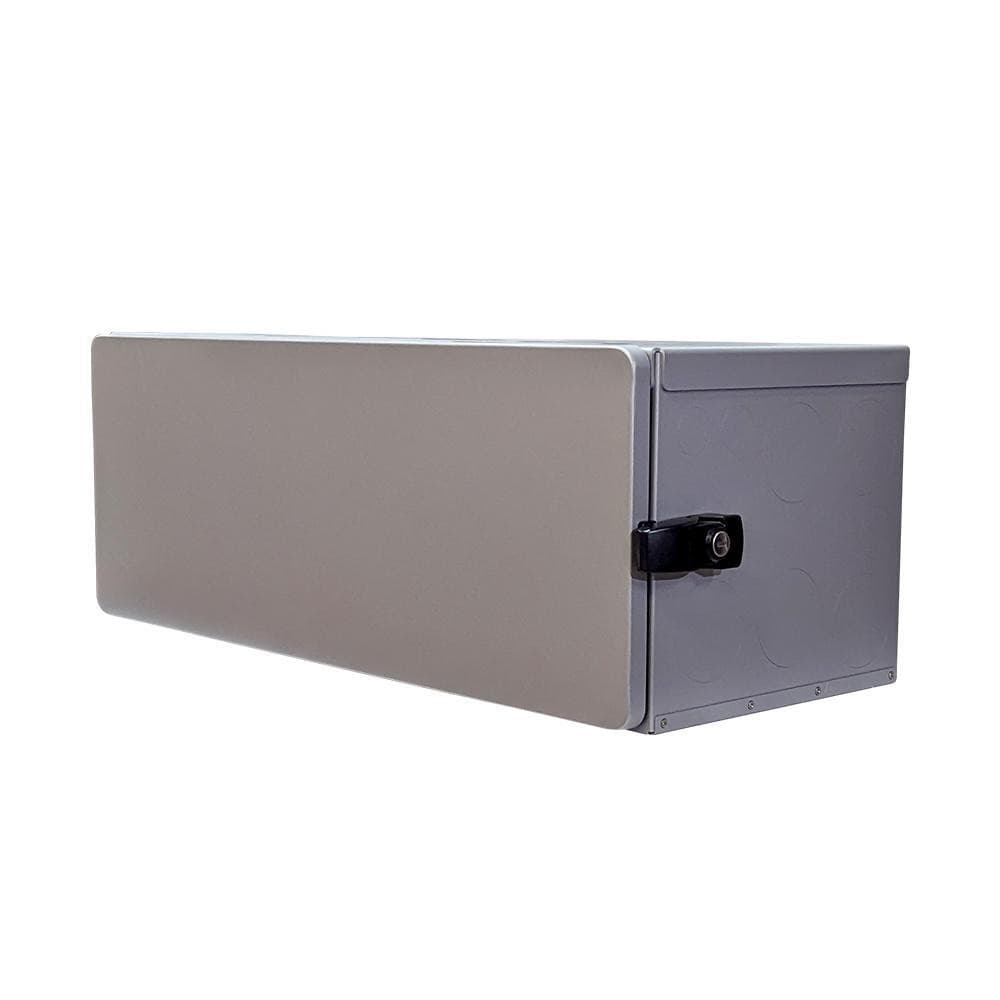

AllWeather Conduit Box
The EG4 AllWeather Conduit Box is the outdoor-rated conduit box for the EG4 inverter family. It mounts to the bottom of a wall-mounted EG4 inverter (12000XP, 18kPV, 12kPV, FlexBOSS18, or FlexBOSS21 depending on the build) and provides the conduit landings and DC/AC wiring space the inverter needs.
In stock and ready to ship.
- Type
- Outdoor-rated conduit box
- Mounting
- Below wall-mounted EG4 inverter
- Enclosure
- NEMA 3R outdoor
- Knockouts
- Pre-cut for DC, AC, and PV conduit runs
- Pairs with
- 12000XP Top Plate (optional)
- Compatible inverters
- EG4 12000XP, 18kPV, 12kPV, FlexBOSS18, FlexBOSS21
About this item
The EG4 AllWeather Conduit Box is the outdoor-rated conduit box for the EG4 inverter family. It mounts to the bottom of a wall-mounted EG4 inverter (12000XP, 18kPV, 12kPV, FlexBOSS18, or FlexBOSS21 depending on the build) and provides the conduit landings and DC/AC wiring space the inverter needs.
NEMA 3R rated, which means it can sit outside without a separate roof or rain shield. Pre-cut knockouts in the bottom and sides for the conduit runs to the panel, the battery, and the PV combiner. Internal wire management keeps the lugs accessible during install and inspection.
The Buildable Conduit Box is the indoor or sheltered alternative if your inverter sits in a garage or utility room. The AllWeather is the right pick when the inverter is on an exterior wall or under a carport. Pairs with the 12000XP Top Plate when the install wants the top plate finish.
