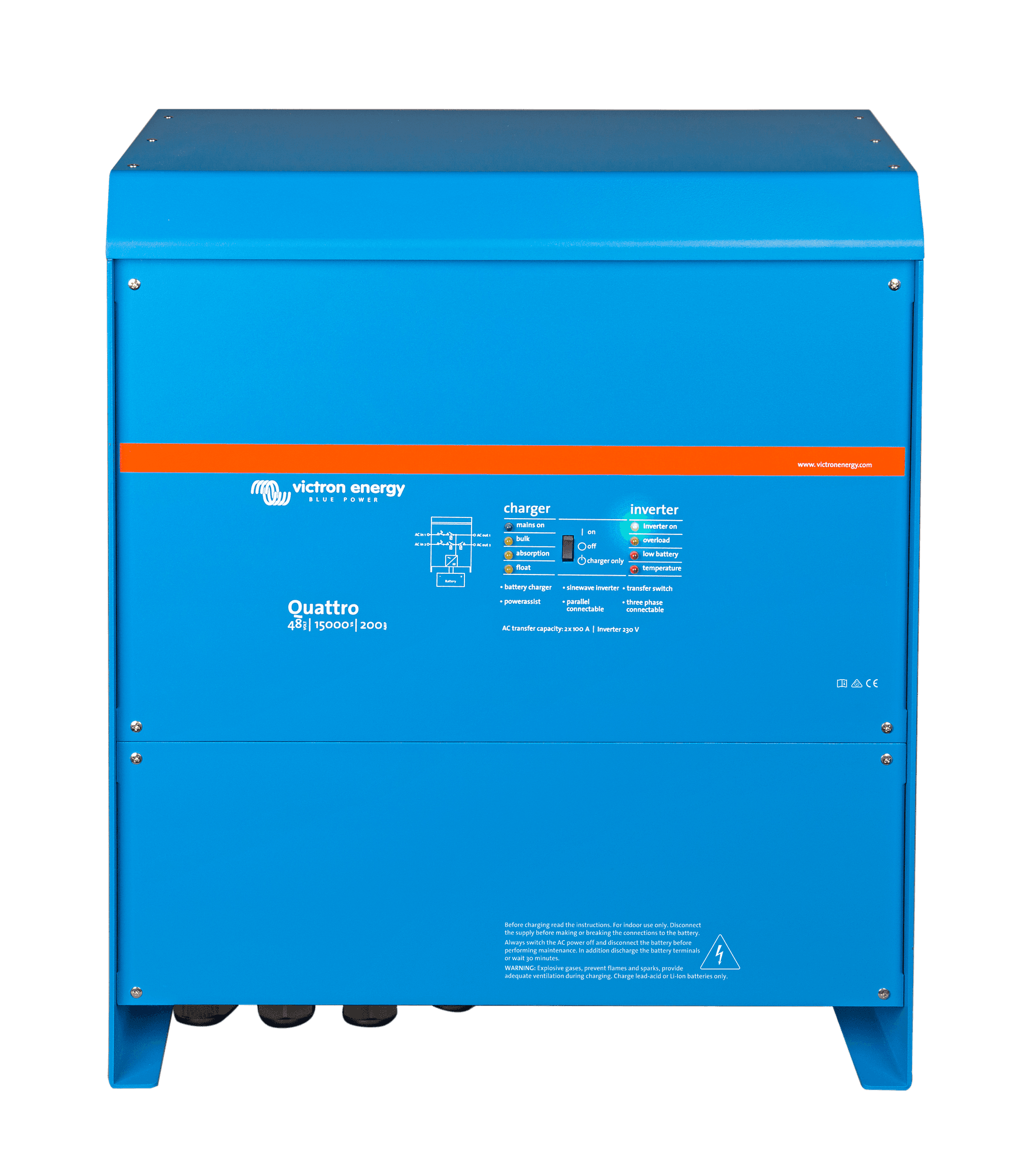

Victron Quattro 48/15000
The Quattro 48/15000 is the largest Quattro in the lineup. 48V battery side, 15000VA output, ~12000W continuous. Two AC inputs for grid + generator switching. Built for whole-home loads with serious peak demand or for paralleled multi-unit installs.
- Comms
- VE.Bus, 2x general-purpose port, remote on/off
- Safety
- EN-IEC 60335 / 62109
- Weight
- 159 lb (72 kg)
- Enclosure
- Aluminium, IP20
- Dimensions
- 572 x 488 x 344 mm
- Peak power
- 25,000 W
About this inverter
The Quattro 48/15000 is the largest Quattro in the lineup. 48V battery side, 15000VA output, ~12000W continuous. Two AC inputs for grid + generator switching. Built for whole-home loads with serious peak demand or for paralleled multi-unit installs.
Up to six of these can be paralleled, which gets you to ~72kW continuous in a three-phase configuration. The size where this machine earns its keep is whole-home off-grid with electric heat, electric water heating, or a workshop running heavy tools on the same service.
The 200A built-in transfer switch handles the AC capacity that comes with this size. PowerControl on each AC input, PowerAssist on each input, VE.Bus comms, five-year Victron warranty.
