3kW Off-Grid Inverter
An inverter, an MPPT solar charge controller, and a battery charger in one box. 3,000W of continuous output, room for 5,000W of solar, and an 80A charger to keep the bank full. Right-sized for a cabin, a barn, an RV build, or a critical-load panel, and it stacks to 12 units when the loads grow.
In stock and ready to ship.
- AC output
- 3 kW
- Max DC input
- 5000 W
- MPPT channels
- 1
- Max MPPT voltage
- 500 V
- MPPT current
- 18 A
- MPPTs
- 1
One box. Solar, battery, and backup.

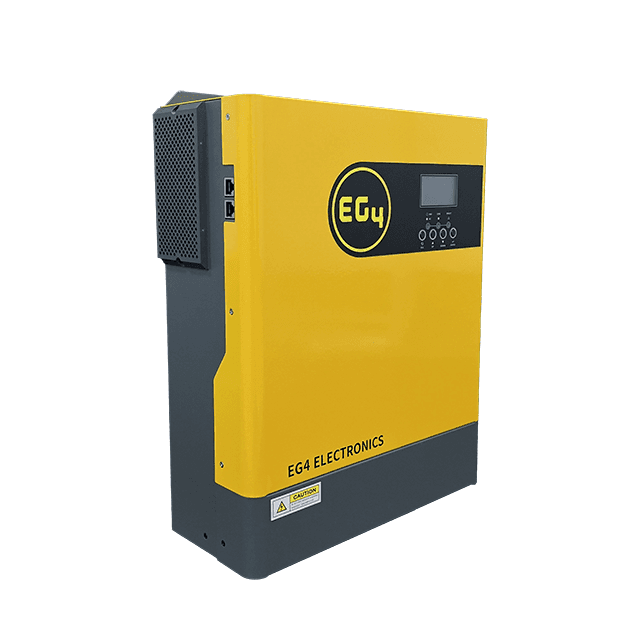

The EG4 3000EHV-48 is a compact all-in-one inverter that puts a 3,000W inverter, an MPPT solar charge controller, and a battery charger in a single unit. It runs 3,000W continuous, takes up to 5,000W of solar across a 500 VDC tracker, and charges a 48V bank at up to 80A. The LCD on the front gives you direct control of charge current, input priority, and the voltage windows the unit will accept.
3,000W all-in-one
Inverter, MPPT charge controller, and battery charger in one box, so a small off-grid system comes together without a stack of separate gear.
5,000W of solar input
Room for more panels than the inverter rating, with a 500 VDC tracker that holds production as the sun moves and shade shifts.
80A battery charger
Charges a 48V bank fast off solar or a generator, so the batteries are topped up and ready when you need them.
Talks to EG4 batteries
Full BMS communication with the EG4 battery line, so the inverter charges and protects the bank the way the cells want.
Upgraded V2 hardware
Larger 2 AWG battery terminals, active cooling, and stronger circuit components. It is backward compatible with V1 units in a parallel stack.
Parallel to 12 units
Start with one and stack up to twelve for a 36kW system. The setup grows with the load instead of being scrapped for a bigger unit.
The 3000EHV-48 is the inverter we reach for on smaller off-grid jobs: a cabin, a barn, an RV build, a critical-load panel, or a 9,000 BTU mini split. If you need whole-home backup or grid interaction, step up to the EG4 12000XP or the FlexBOSS18.
More Inverters
12000XP V2
A 12,000W off-grid inverter, and up to 15,000W with solar on the build, made for systems that live off the battery. Up to 500V of PV across two MPPTs, 48V battery, split-phase 120/240V output. The workhorse for cabins and homesteads with no grid tie.
$2,299$1,899
18kPV Hybrid Inverter
EG4's flagship hybrid, and the inverter most of our whole-home builds start from. It runs 12,000W continuous, takes up to 18,000W of solar across three MPPTs, and switches between off-grid, grid-tied, and battery backup on its own. Split-phase 120/240V, 48V battery, UL1741 listed. Room to over-panel to a 21,000W array, and you can stack up to ten in parallel.
$4,898
6000XP Inverter
EG4's all-in-one off-grid inverter for smaller systems. 6,000W continuous, up to 480V and 8,000W of solar across two MPPTs, 48V battery, split-phase 120/240V. A common heart for a single-room cabin or a backup build that does not need whole-home power.
$1,650
