24K Multizone Mini-Split AC/DC Outdoor Unit
The outdoor side of a multi-zone hybrid system. One outdoor unit runs 2 or 3 indoor heads and shares 24,000 BTU of cooling between them. EG4 approves four head combos on this compressor: two 12Ks, a 12K with an 18K, two 18Ks, or three 12Ks. Some of those add up to more than 24,000 BTU on paper, and that's by design. Rooms rarely all peak at once, so the compressor sends its capacity where it's needed.
Currently out of stock. Contact us for lead time.
5.036 Google reviews- Certifications
- AHRI Certified, ENERGY STAR Certified
- SKU
- 1510976
Add your indoor zones.
Build one of the EG4-approved zone combos for this outdoor unit (2 zones minimum). Each zone auto-pairs the right line set and a comm cable. Adjust lengths to match your install.
Click + Add above to drop zones in. This compressor needs at least 2 and runs up to 3, in one of the approved combos shown above.
About this mini-split
The outdoor side of a multi-zone hybrid system. One outdoor unit runs 2 or 3 indoor heads and shares 24,000 BTU of cooling between them. EG4 approves four head combos on this compressor: two 12Ks, a 12K with an 18K, two 18Ks, or three 12Ks. Some of those add up to more than 24,000 BTU on paper, and that's by design. Rooms rarely all peak at once, so the compressor sends its capacity where it's needed.
Hybrid AC/DC power inputs: 208 to 240 VAC for grid, 100 to 410 VDC for solar. One MPPT port. The unit prioritizes solar during the day and switches to grid when the panels aren't producing. Build the array to hit 2,300W minimum.
R32 refrigerant. SEER2 around 22, HSPF2 around 10. Cooling 5 to 131°F outdoor, heating 5 to 86°F outdoor. Outdoor noise 58 to 60 dB(A). 5-year limited warranty. AHRI Certified and Energy Star Certified.
Indoor heads are sold separately so you size each zone to its room. This compressor takes the 12K and 18K heads; the 24K head only runs on the 36K outdoor unit. Pair each head with its matching line set (3/8 inch for the 12K, 1/2 inch for the 18K) and one comm cable per head. The configurator on this page walks every part and only builds the combos EG4 signed off on.
Spec sheets, manuals, and white papers.
Manuals & guides
The solar setup parts.

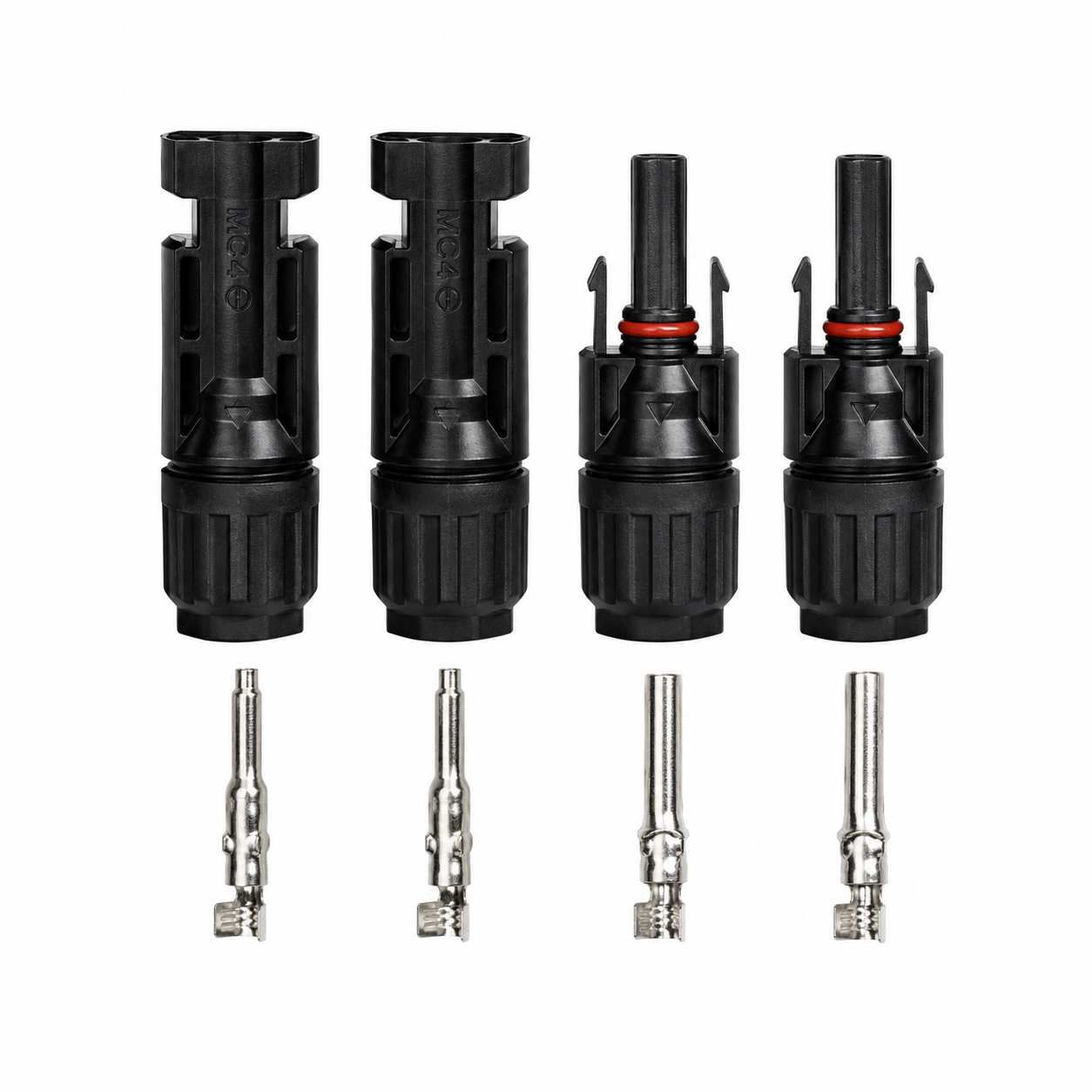

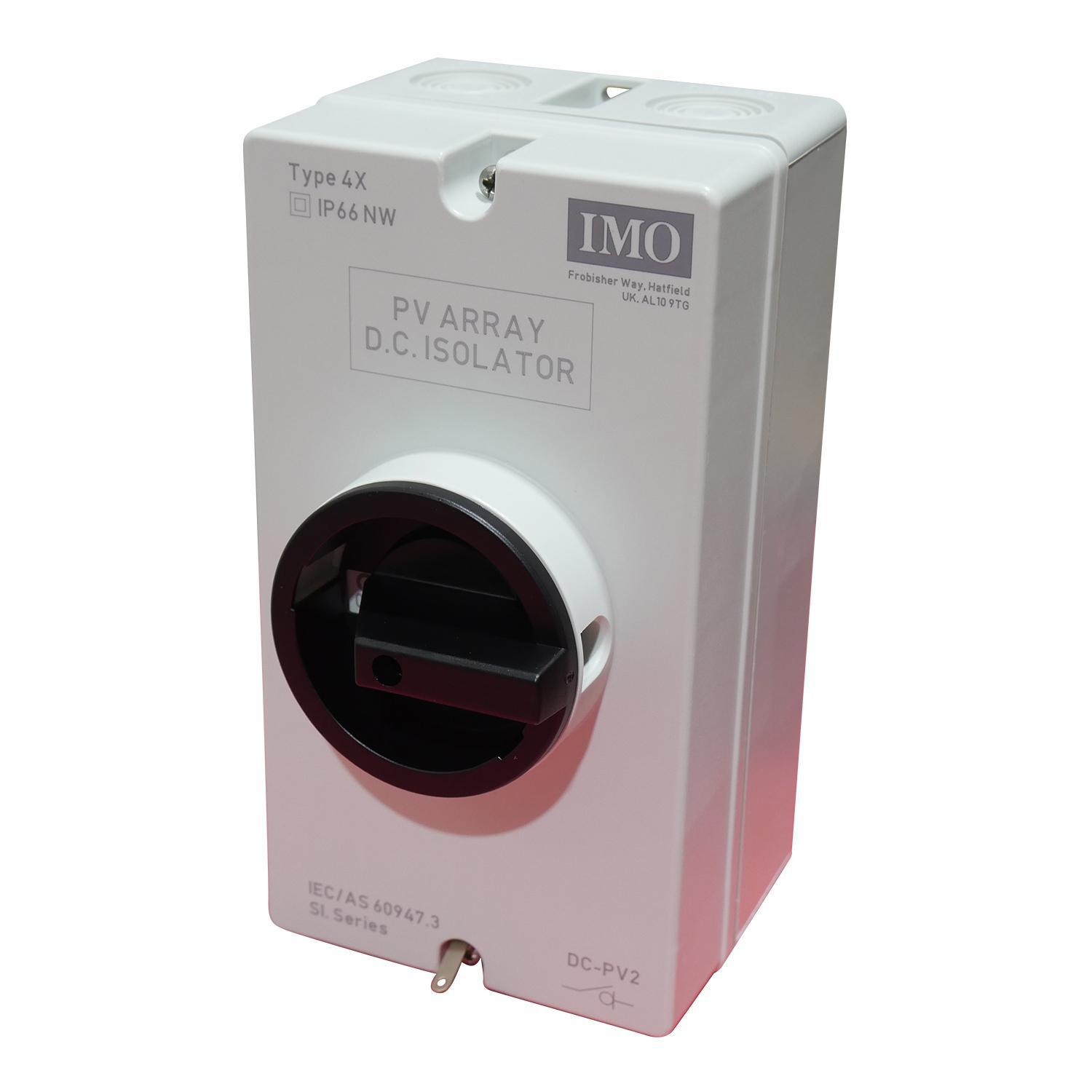

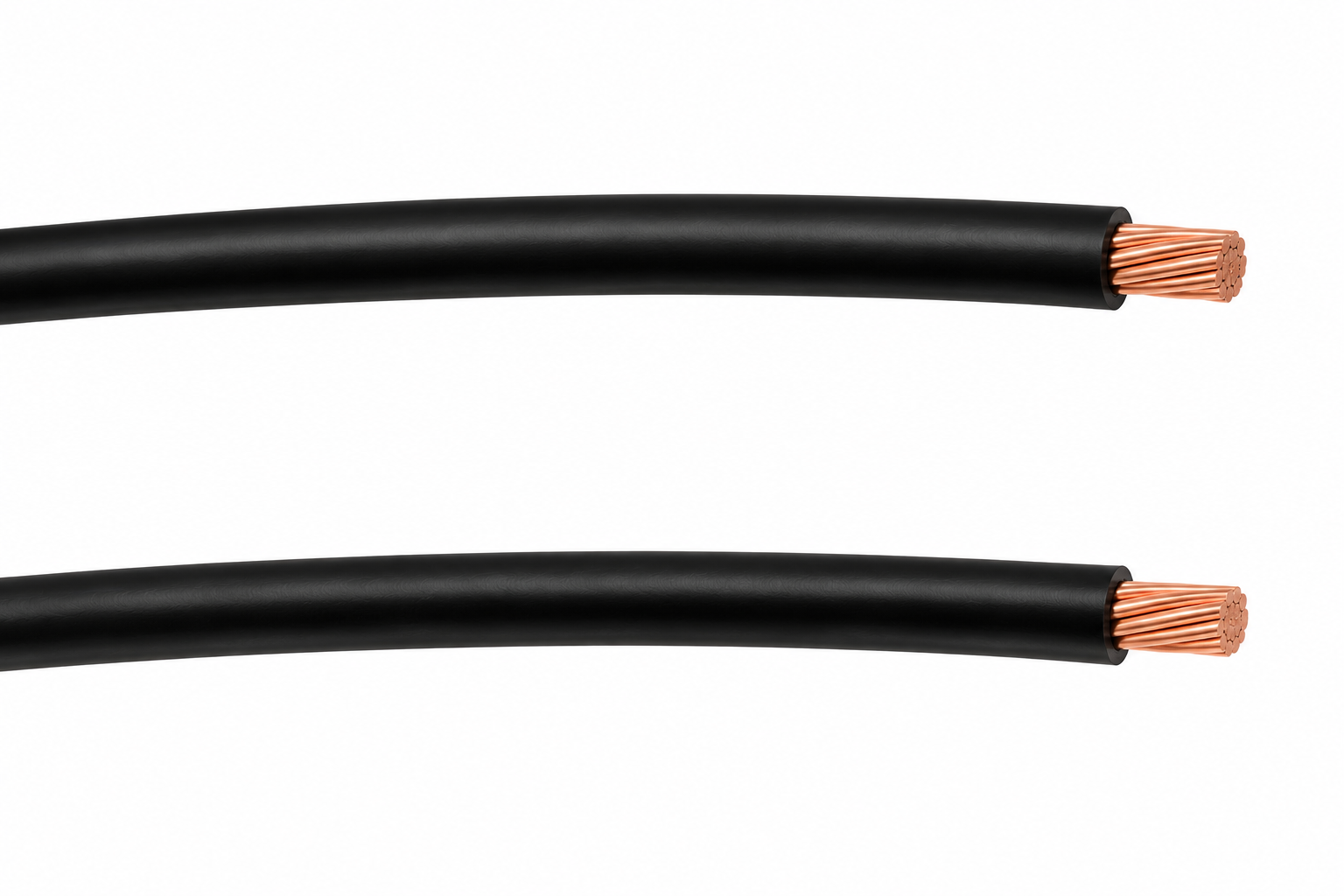

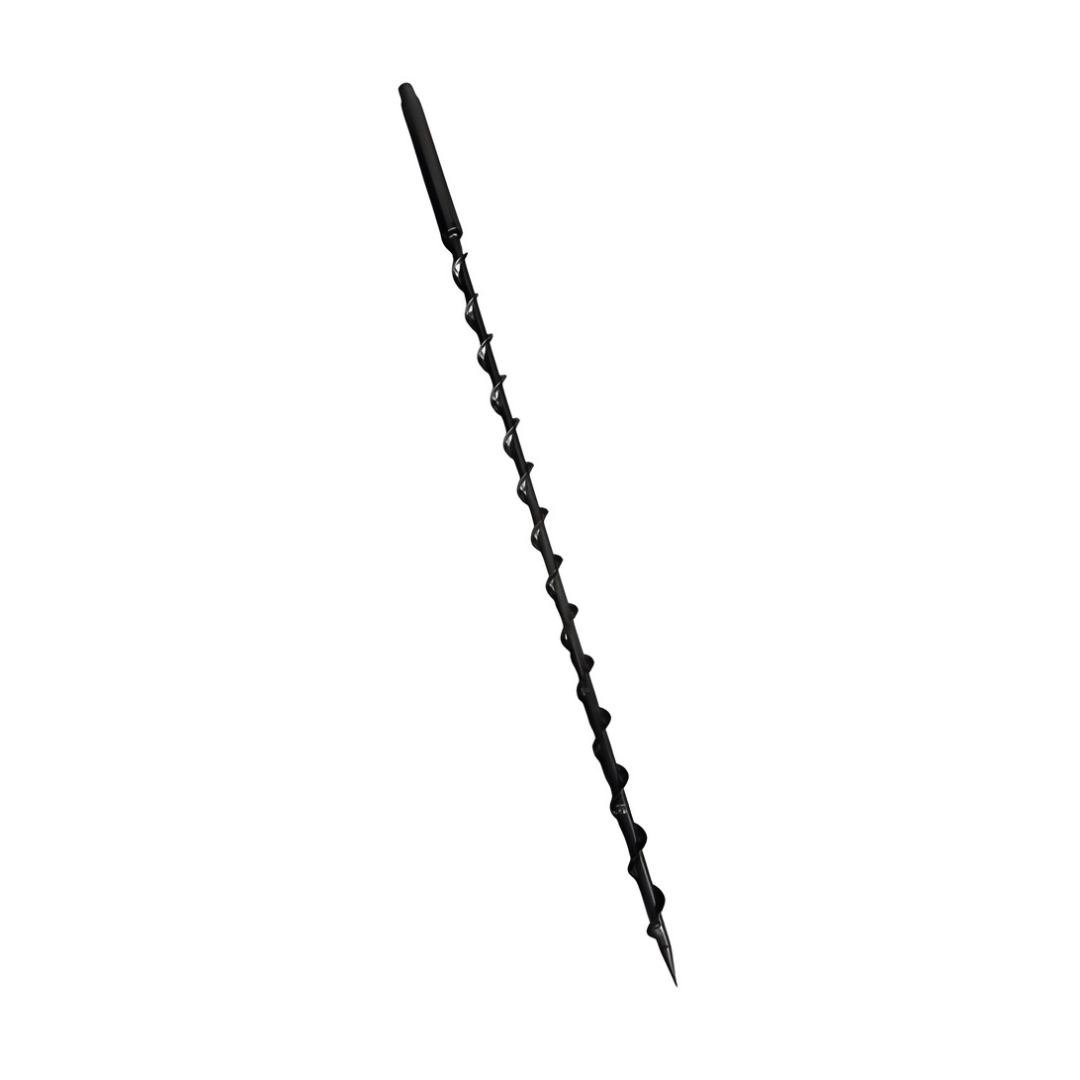

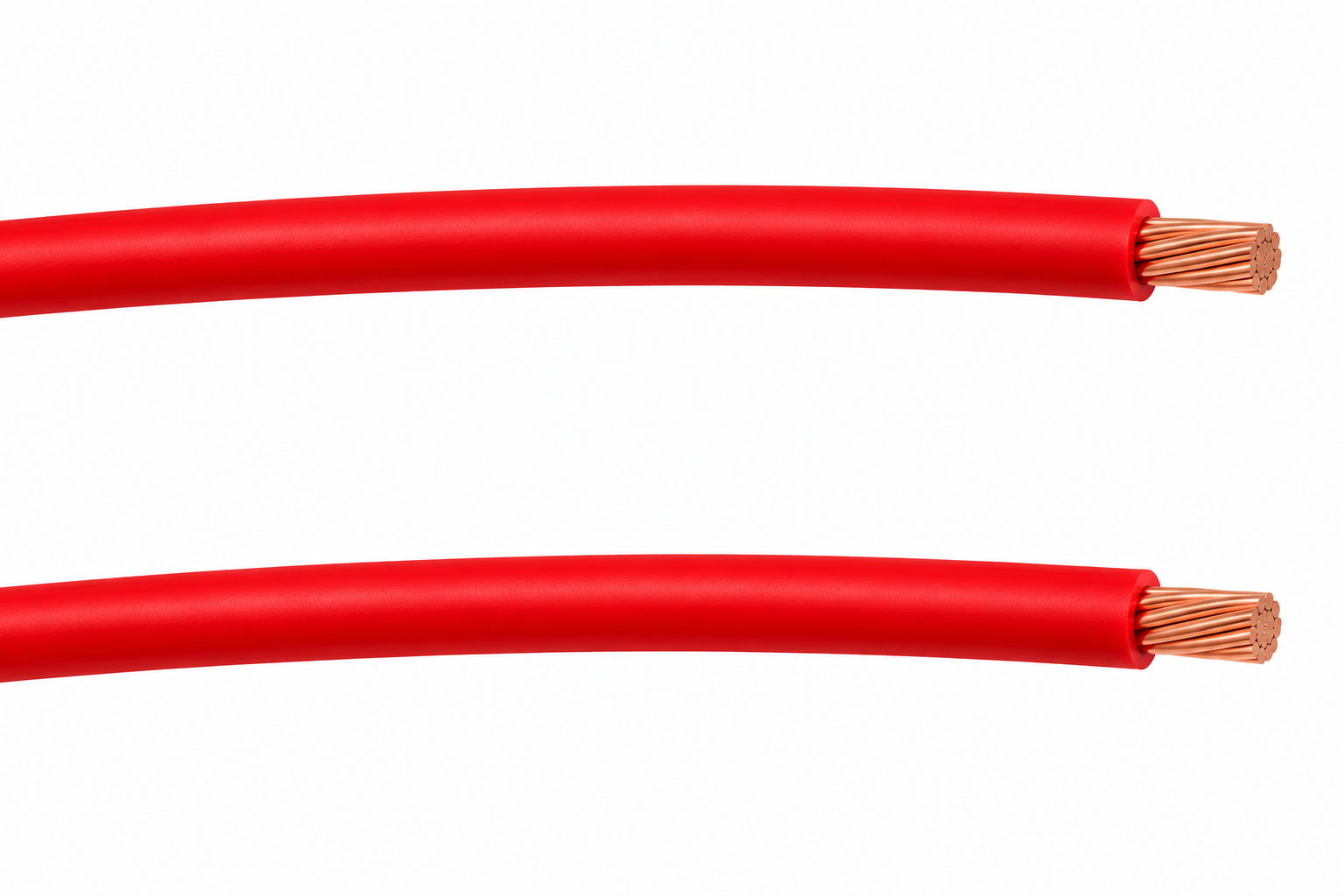

Going solar with this unit? These are the install parts to wire the array into the DC input. Quantities are sized for the typical array; adjust per row if your install is different.
Going solar with this unit? These are the install parts you need to wire the array into the DC input. Adjust quantities to match your actual install.
