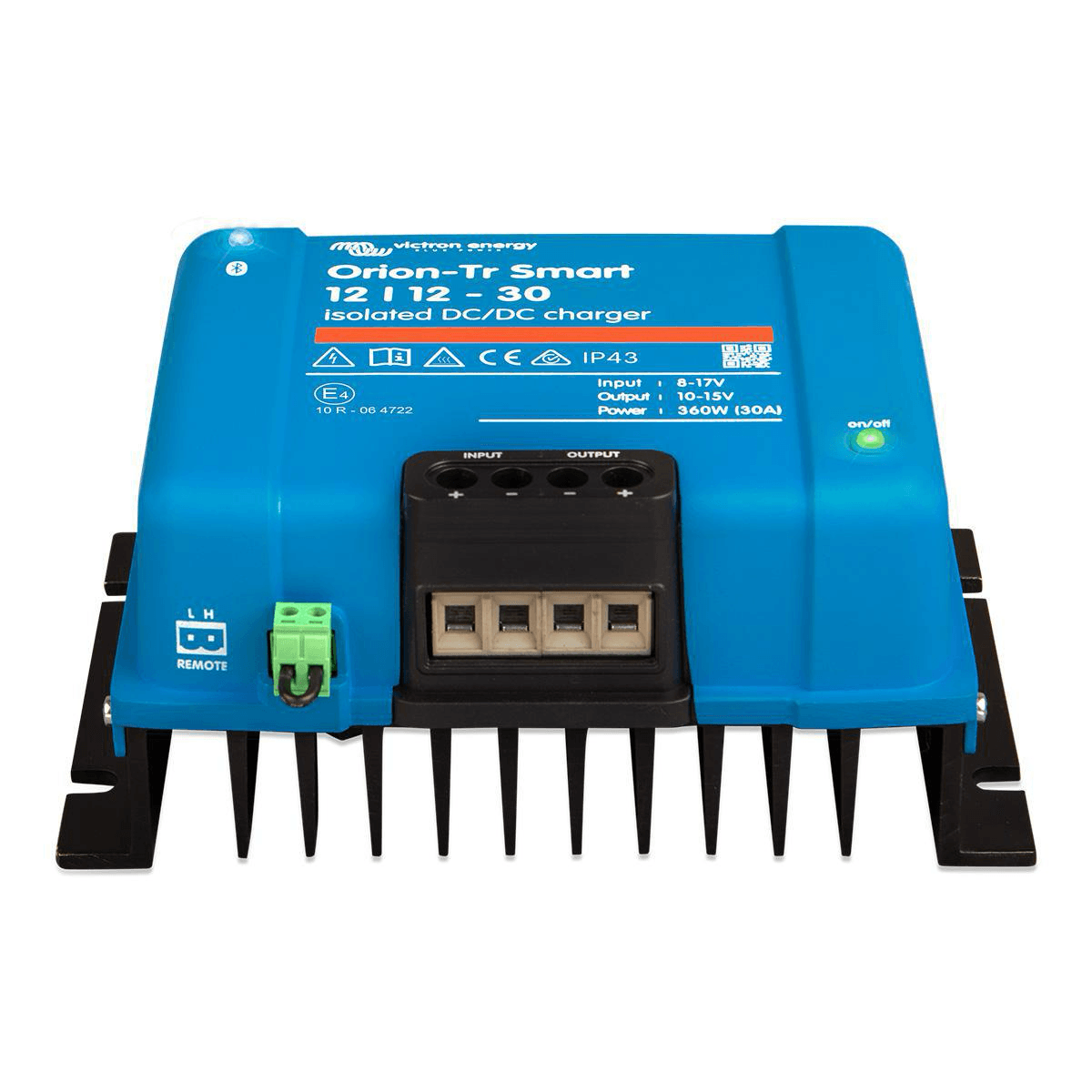

Victron Orion-Tr Smart 12/12-30A Isolated DC-DC Charger
The Orion-Tr Smart 12/12-30 charges the house battery in your RV or van off the alternator while you drive. It puts out 30 amps (360W) at 12V. Set it to run only while the engine is running and it won't pull down your starter battery when you're parked. The input and output are electrically isolated from each other and the case. It works with the smart alternators on newer engines, and you pick the lithium or lead acid charge profile from the VictronConnect app on your phone.
Currently out of stock. Contact us for lead time.
5.036 Google reviews- Comms
- Bluetooth (no VE.Direct port)
- Weight
- 1.8 kg
- Enclosure
- IP43 (electronics), IP22 (connection area)
- Isolation
- Isolated, 200 VDC between input, output, and case
- Max cable
- AWG6 (16 mm²)
- Dimensions
- 130 x 186 x 80 mm (h x w x d)
About this item
The Orion-Tr Smart 12/12-30 charges the house battery in your RV or van off the alternator while you drive. It puts out 30 amps (360W) at 12V. Set it to run only while the engine is running and it won't pull down your starter battery when you're parked. The input and output are electrically isolated from each other and the case. It works with the smart alternators on newer engines, and you pick the lithium or lead acid charge profile from the VictronConnect app on your phone.
