2023 NEC Sticker Pack
This sticker pack covers the labels and placards a solar install needs to pass inspection under the 2023 NEC. It includes the rapid shutdown placards, disconnect and inverter markings, conduit labels, and the power source directory, all printed on durable weather-rated stock that meets the code’s permanence rules. One pack handles the common warning and identification points on a typical residential system.
In stock and ready to ship.
5.036 Google reviews- Use
- Disconnects, inverter, junction boxes, DC raceways
- Material
- UL 969-rated, weatherproof
- What it is
- PV system label and placard set per 2023 NEC
- Code coverage
- Articles 690, 705, 710
- Rapid shutdown placard
- Red, white lettering, reflective
About this item
This sticker pack covers the labels and placards a solar install needs to pass inspection under the 2023 NEC. It includes the rapid shutdown placards, disconnect and inverter markings, conduit labels, and the power source directory, all printed on durable weather-rated stock that meets the code’s permanence rules. One pack handles the common warning and identification points on a typical residential system.
More Accessories

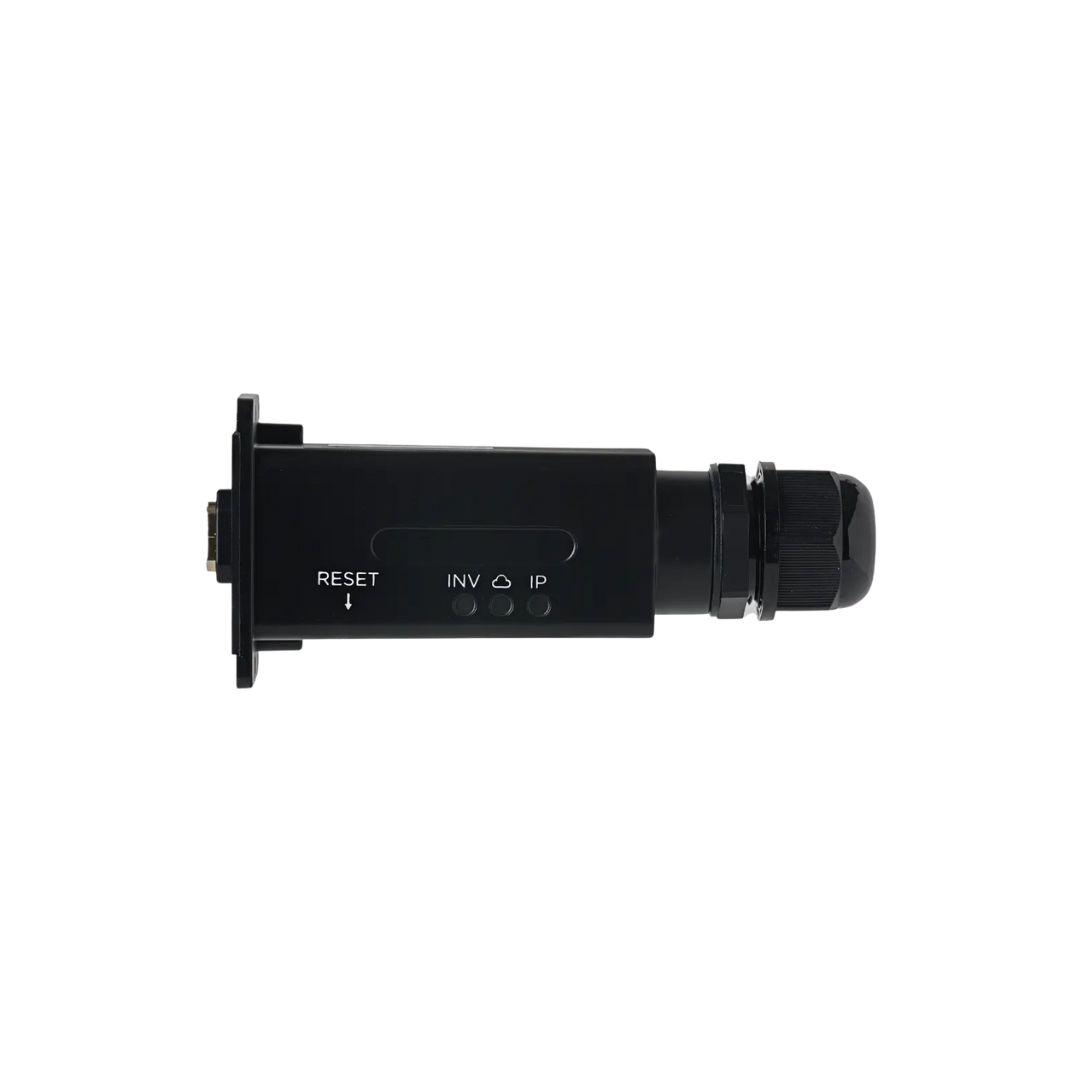

EG4 Ethernet Adapter
This is EG4's wired monitoring adapter (part EG4SP18KDLETH), the small box that carries your inverter's data to the EG4 app over a network cable instead of WiFi. It plugs into the inverter's monitoring port, and a standard RJ45 Ethernet line runs from the cable gland on its body back to your router. Three status lights sit on the face so you can read the connection at a glance: INV for the link to the inverter, a cloud light for the reach out to the EG4 portal, and IP for its network address. There is a reset button, and the unit mounts to the inverter with its built-in faceplate. It works across the EG4 inverter line, the 3k Off-Grid being the exception. The reason to run this over the WiFi dongle is that a cable does not drop. If the inverter lives in a garage, a shop, or a back corner where the WiFi is thin, a wireless adapter that keeps falling offline leaves gaps in your history and an app that shows nothing right when you want a look. Wire it straight to the router and the link stays up, so the numbers keep coming in. If there is a network jack anywhere near the inverter, this is the steadier way to keep eyes on the system.
$33

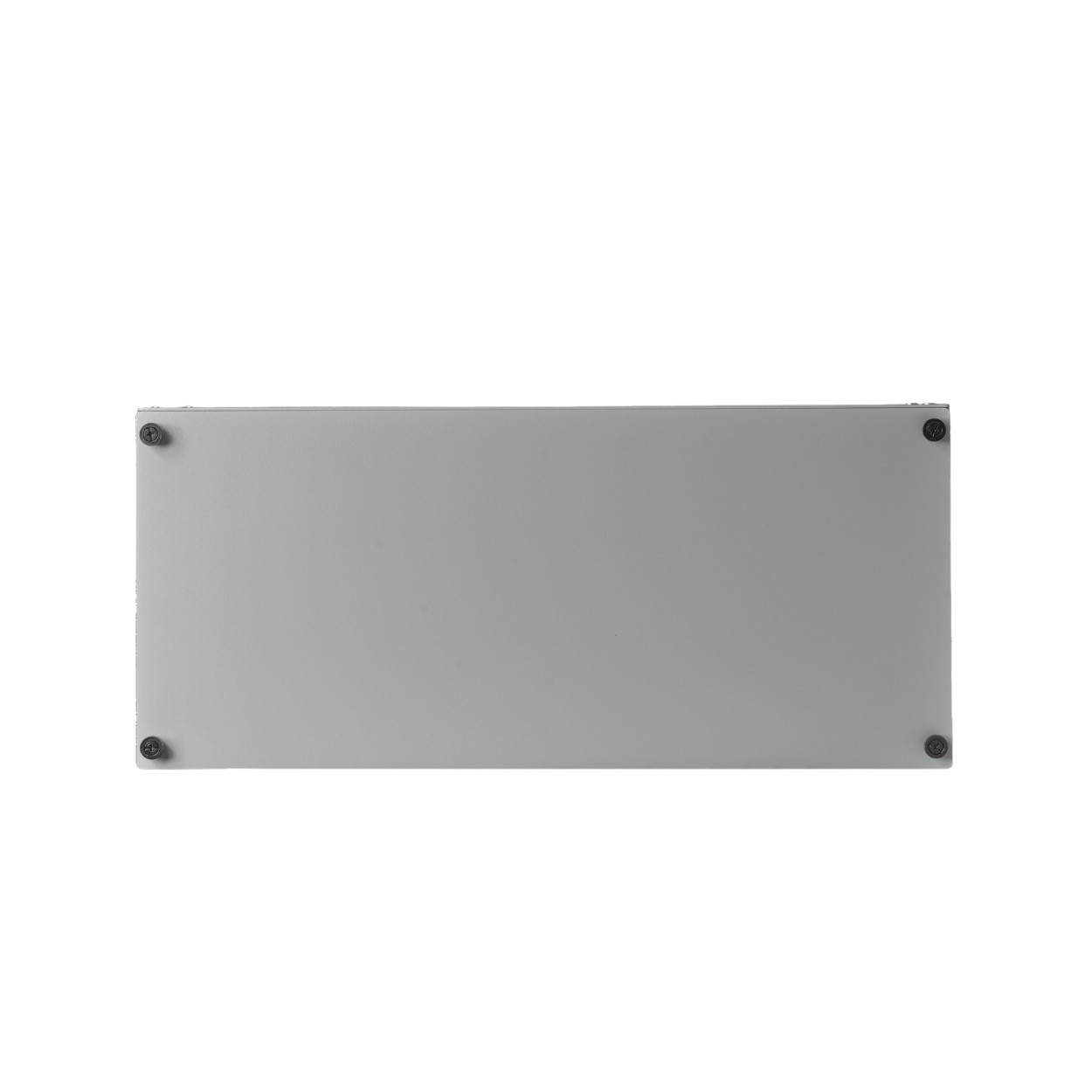

EG4 Indoor Conduit Box Top Plate (100Ah WallMount)
This is EG4's indoor conduit box for the 100Ah WallMount battery and the 6000XP off-grid inverter. It gives the wiring between the two a clean, enclosed run instead of leaving cable out in the open. The box measures 17.8 inches long, 7.08 inches wide, and 7.9 inches tall, and it ships as a kit with the plates, screws, and parts to put it together (model EG4SP48V100AHIDWMBCNDTBOXV1). The part that earns its keep is the matching knockouts on both the left and right plates, so you can bring conduit in from whichever side lines up with your wall and panel. You build it to fit the install rather than working around one fixed opening. Pair it with the WallMount battery and the 6000XP and the finished wall reads like a real electrical job instead of a pile of loose cable.
$50

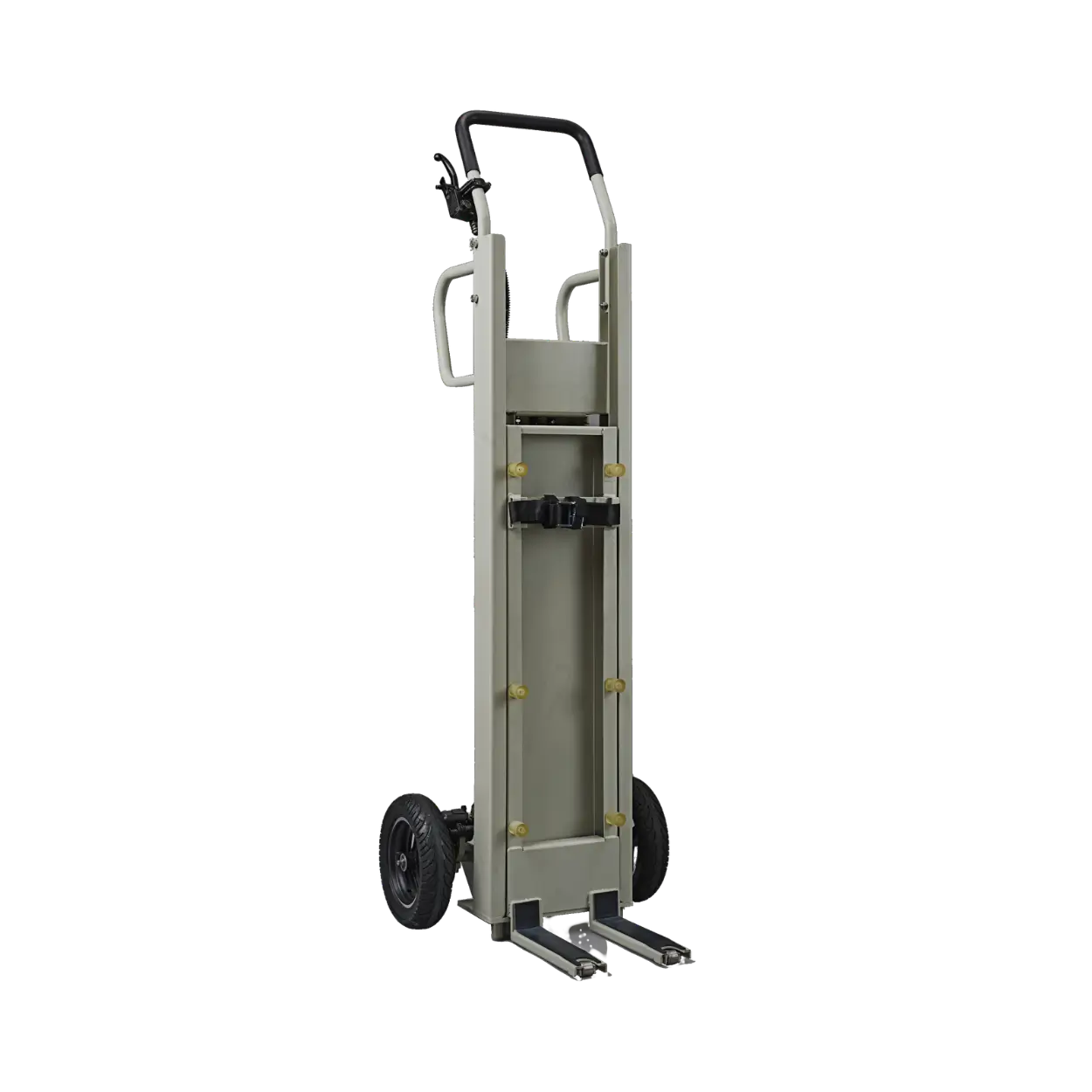

EG4 PowerLift Pro
The EG4 PowerLift Pro is a wheeled lift built for one job: getting a heavy EG4 wall-mount battery or inverter up onto the wall without a second set of hands and a wrenched back. It runs off a standard power drill instead of a hand crank, and it will raise up to 441 pounds (200 kg) to a maximum lift height of 31.9 inches. The unit stands 60 inches tall and 20.2 inches wide, so it fits through a normal doorway and rolls right up to the wall on its own wheels. The drill drive is the part that earns it. A loaded EG4 WallMount battery is a two- or three-person lift by hand, and this lets one installer put a drill on the drive, run the load up to height, and hold it steady while it gets bolted in. That means fewer people tied up on a battery install and a lot less chance of dropping expensive gear or hurting a back. If you set wall-mount batteries with a small crew, it pays for itself the first time nobody has to bear-hug 400 pounds up a wall.
$943
