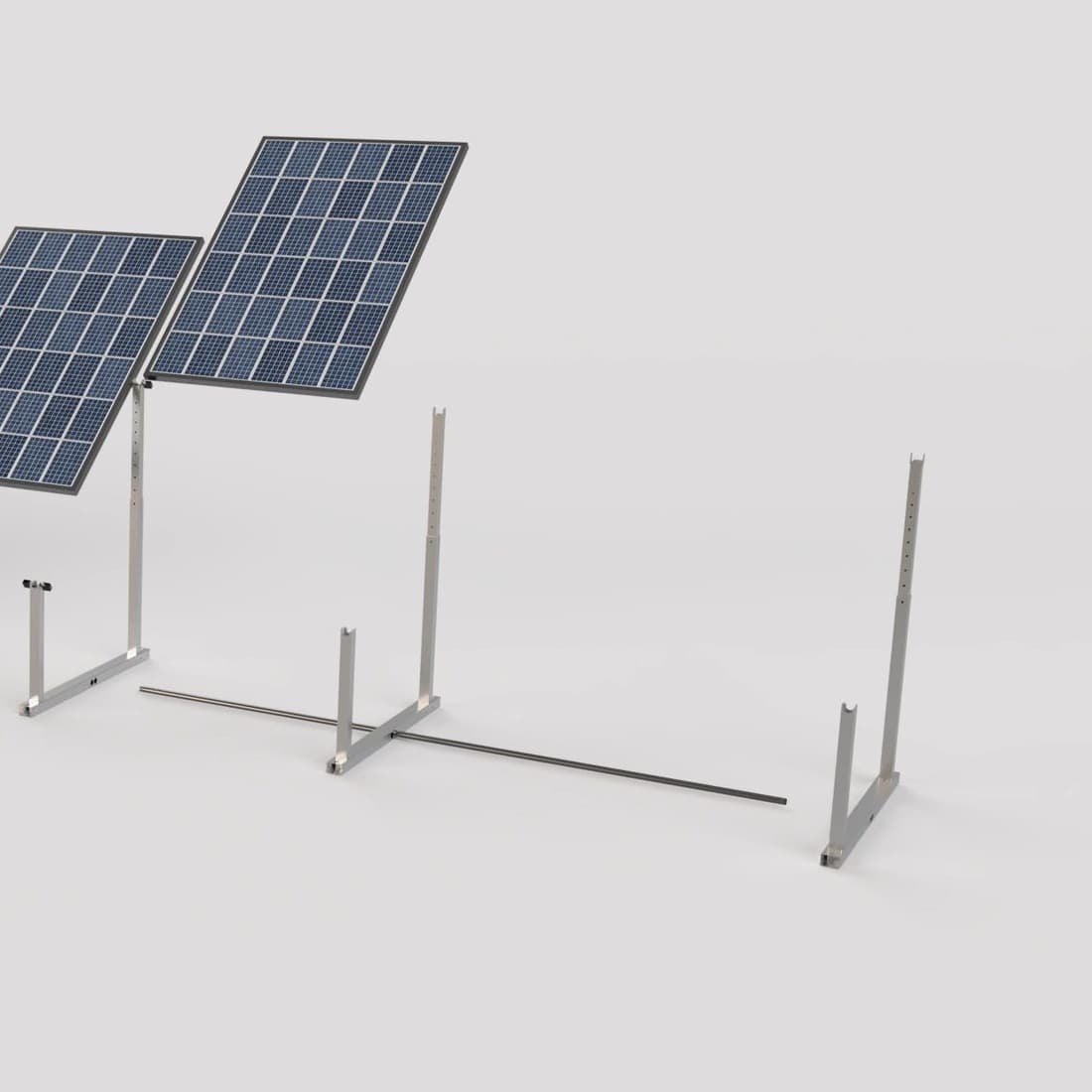

IntegraRack BallastRack Frame IR-40FSAA (15 to 40 Degree One Time Adjustable)
Where the IR-30 is fixed at 30 degrees, the IR-40FSAA lets you set the tilt anywhere from 15 to 40 degrees in 2.5 degree steps, then lock it there. It's a set-once adjustment, so pick the angle for the whole year, and the frame is 6061-T6 aluminum. The angle you choose moves the wind rating: with panels up to 24 square feet on EarthBallast, AnchorSpike, or a concrete slab, it's rated for 160 mph at 15 degrees and 110 mph at 40 (outer frames without a house or wall to block the wind may need extra ballast to reach 160), with lower numbers for bigger panels and for water-bladder ballast. IntegraRack backs it with a 25 year limited warranty.
In stock and ready to ship.
5.036 Google reviews- Tilt
- 15 to 40 degrees, set at assembly in 2.5 degree steps
- Model
- IR-40FSAA0041
- Weight
- 15 lb per frame
- Included
- Base tube, short leg, adjustable long leg, 4 IR-F2 flange clamp bonding brackets, 4 Bolt A, 4 Nut A, 4 Bolt B (per frame)
- Material
- Aircraft grade aluminum
- Warranty
- 25 year limited product warranty (IntegraRack)
About this item
Where the IR-30 is fixed at 30 degrees, the IR-40FSAA lets you set the tilt anywhere from 15 to 40 degrees in 2.5 degree steps, then lock it there. It's a set-once adjustment, so pick the angle for the whole year, and the frame is 6061-T6 aluminum. The angle you choose moves the wind rating: with panels up to 24 square feet on EarthBallast, AnchorSpike, or a concrete slab, it's rated for 160 mph at 15 degrees and 110 mph at 40 (outer frames without a house or wall to block the wind may need extra ballast to reach 160), with lower numbers for bigger panels and for water-bladder ballast. IntegraRack backs it with a 25 year limited warranty.
