Victron SmartSolar MPPT 250/100-Tr VE.Can
The SmartSolar MPPT 250/100 steps the PV input range up to 250V max Voc, with the same 100A charge current to the battery side. Terminal block input and VE.Can comms.
- Comms
- VE.Can, VE.Direct, Bluetooth, remote on/off
- Safety
- UL 1741, EN/IEC 62109-1, CSA
- Weight
- 4.5 kg
- Enclosure
- IP43 (IP22 connection area)
- Terminals
- 35 mm² / AWG2
- Dimensions
- 216 x 295 x 103 mm
About this product
The SmartSolar MPPT 250/100 steps the PV input range up to 250V max Voc, with the same 100A charge current to the battery side. Terminal block input and VE.Can comms.
The higher PV input voltage matters when your array runs longer strings: more panels in series means higher string voltage, which keeps wire sizes manageable on long runs from the array to the controller. Common on ground-mount arrays, larger residential roofs, or any install where the array is more than a quick run from the power room.
Auto-detects 12V, 24V, or 48V battery banks. VE.Can ties it into a Cerbo GX. Five-year Victron warranty.
More Charge Controllers
Victron MPPT 150/35
A SmartSolar MPPT charge controller for off-grid and DC-coupled builds. It takes up to 150V of solar and delivers 35A to a 12, 24, or 48V bank at over 98% efficiency, with Bluetooth built in so you tune and monitor it from your phone. A solid mid-size controller for a few hundred watts up to a couple thousand watts of panel.
$160

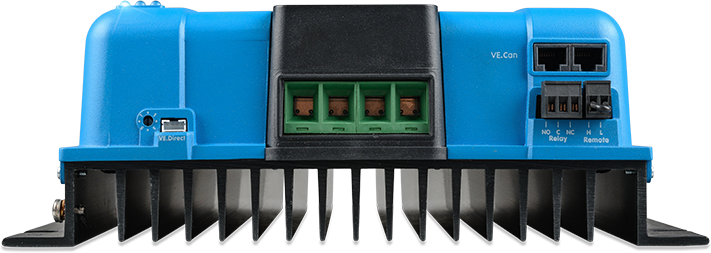

Victron SmartSolar MPPT 150/100-Tr VE.Can
The SmartSolar MPPT 150/100 with terminal blocks and VE.Can. 150V max PV Voc input, 100A max charge current to a 12V, 24V, or 48V battery bank. The largest 150V controller in the SmartSolar lineup. 100A puts this controller in the right size band for serious off-grid builds: cabins running a household-style 48V bank, larger marine banks, or any system where the array is feeding a big lithium pack and the install wants one controller instead of two smaller ones in parallel. VE.Can comms ties it into a Cerbo GX with the rest of the Victron stack. Five-year Victron warranty.
$517

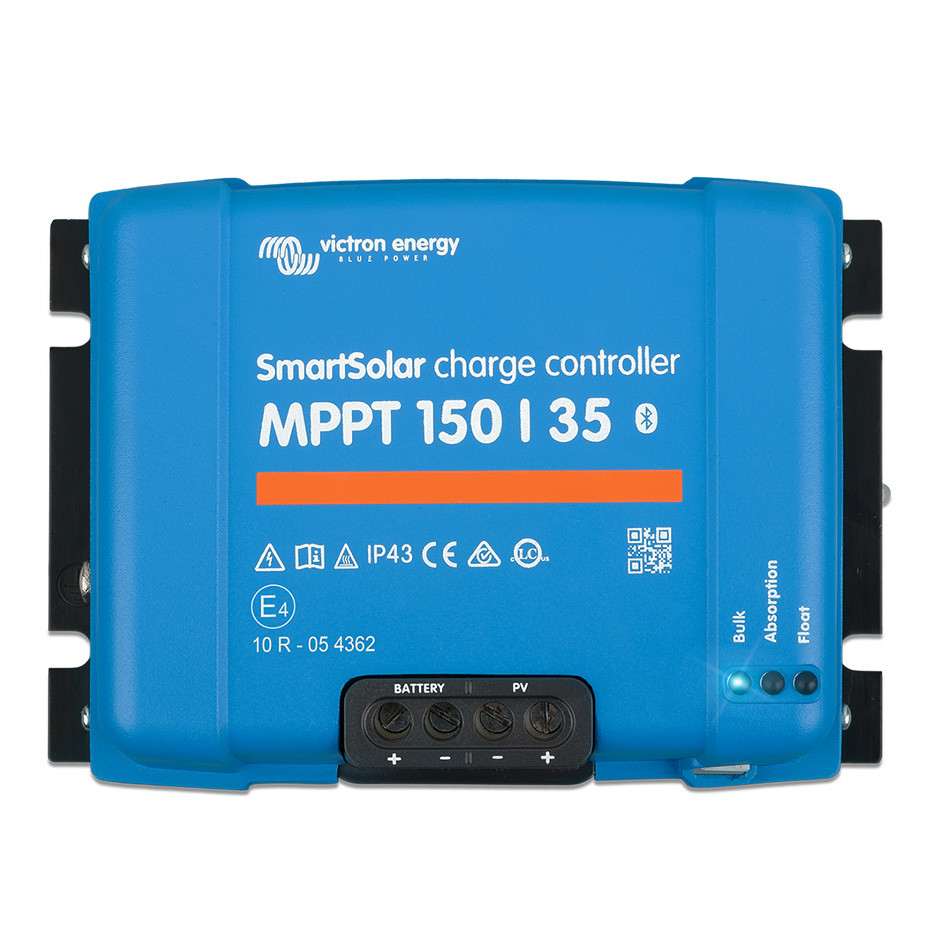

Victron SmartSolar MPPT 150/35
The SmartSolar MPPT 150/35 is the small end of the 150V PV family. 150V max PV Voc on the input, 35A max charge current on the battery side. Auto-detects 12V, 24V, or 48V battery banks. The 150V input voltage range is generous enough to run a typical two- or three-panel string at high enough voltage to keep wire losses low. 35A on the battery side suits small to mid-size systems: RVs, marine builds, sheds, tiny homes. VE.Direct comms tie it to a phone over Bluetooth (the SmartSolar app on iOS or Android) or to a Cerbo GX. Configure charge profiles for lithium, AGM, gel, or flooded lead-acid right from the app. Five-year Victron warranty.
$184
