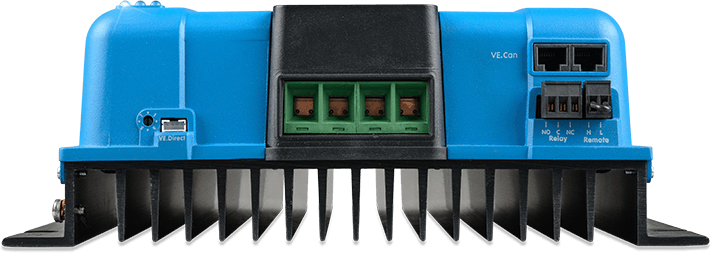

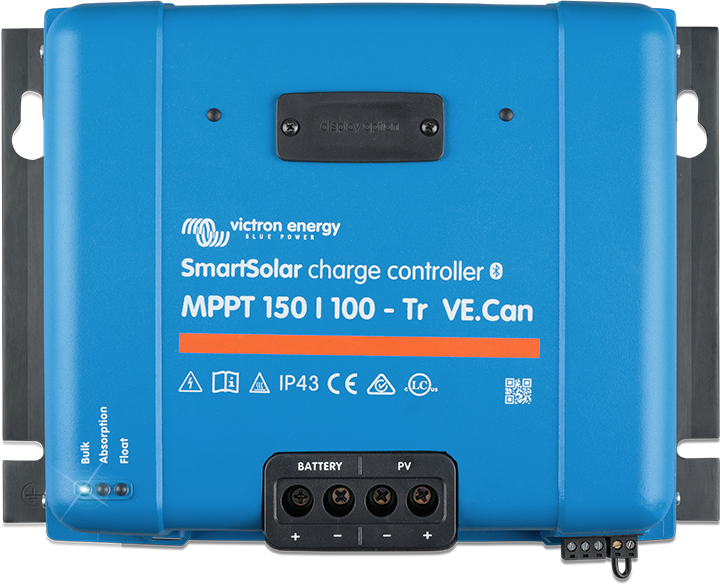

Victron SmartSolar MPPT 150/100-Tr VE.Can
The SmartSolar MPPT 150/100 with terminal blocks and VE.Can. 150V max PV Voc input, 100A max charge current to a 12V, 24V, or 48V battery bank. The largest 150V controller in the SmartSolar lineup.
- Comms
- VE.Can, VE.Direct, Bluetooth, remote on/off
- Safety
- UL 1741, EN/IEC 62109-1, CSA
- Weight
- 4.5 kg
- Enclosure
- IP43 (IP22 connection area)
- Terminals
- 35 mm² / AWG2
- Dimensions
- 216 x 295 x 103 mm
About this product
The SmartSolar MPPT 150/100 with terminal blocks and VE.Can. 150V max PV Voc input, 100A max charge current to a 12V, 24V, or 48V battery bank. The largest 150V controller in the SmartSolar lineup.
100A puts this controller in the right size band for serious off-grid builds: cabins running a household-style 48V bank, larger marine banks, or any system where the array is feeding a big lithium pack and the install wants one controller instead of two smaller ones in parallel.
VE.Can comms ties it into a Cerbo GX with the rest of the Victron stack. Five-year Victron warranty.
