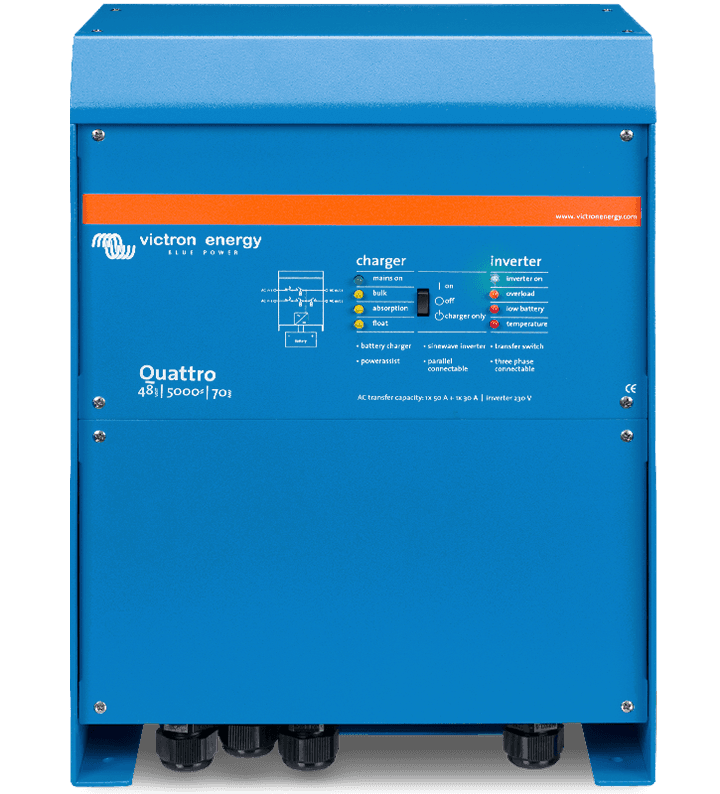

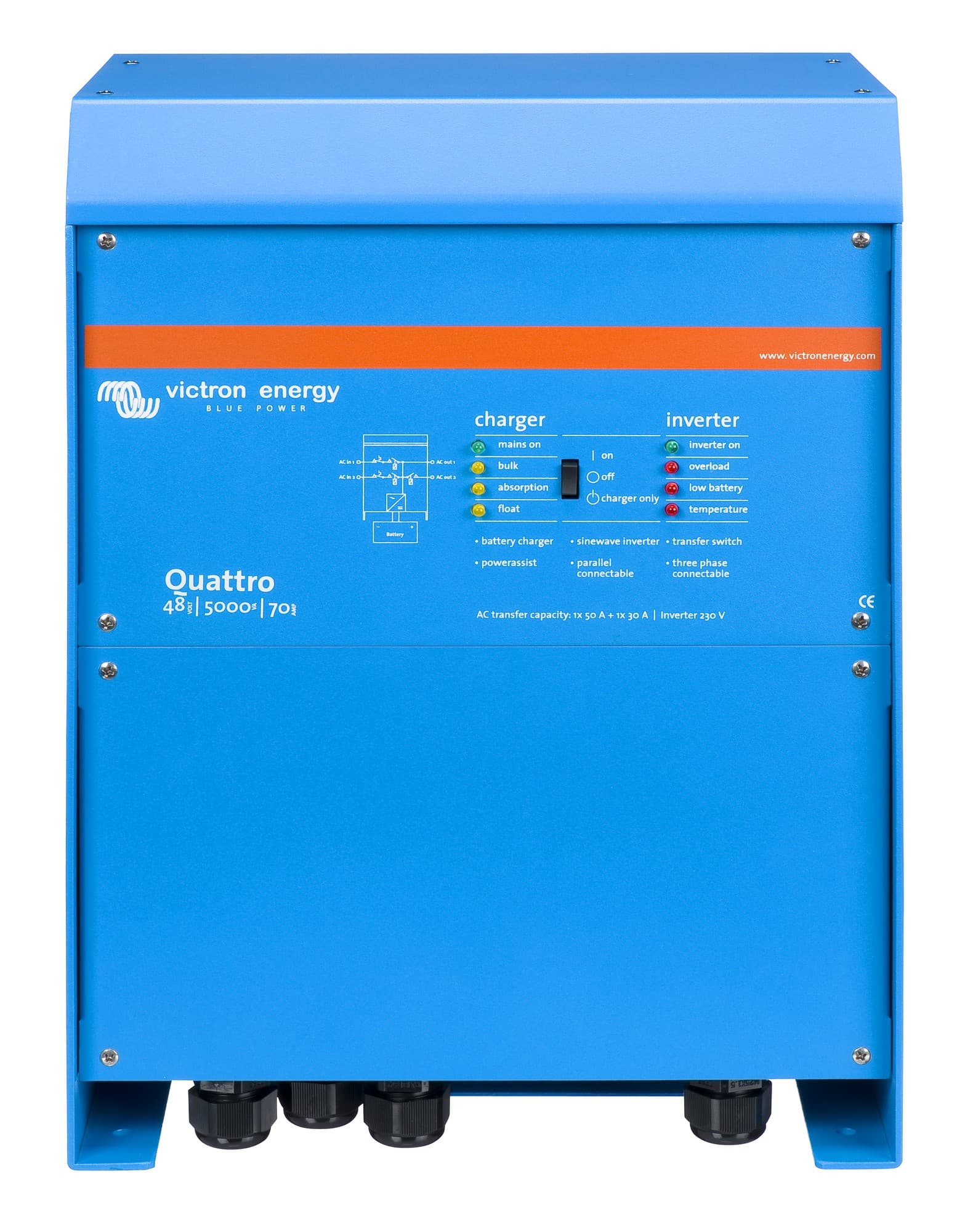

Victron Quattro 48/5000
The Quattro 48/5000 steps the inverter up to 5000VA (~4000W continuous) while keeping the two AC inputs for grid + generator switching. 48V battery side. Same PowerControl and PowerAssist on each input independently as the smaller Quattro 48/3000.
- Comms
- VE.Bus, 2x general-purpose port, remote on/off
- Safety
- UL 1741, EN-IEC 60335 / 62109
- Weight
- 66 lb (30 kg)
- Enclosure
- Aluminium, IP21
- Dimensions
- 17.5 x 13.0 x 9.6 in
- Peak power
- 10,000 W
About this inverter
The Quattro 48/5000 steps the inverter up to 5000VA (~4000W continuous) while keeping the two AC inputs for grid + generator switching. 48V battery side. Same PowerControl and PowerAssist on each input independently as the smaller Quattro 48/3000.
The 5000VA size is the right pick when a 3000VA machine doesn't have enough headroom for transient loads (well pump start, larger AC compressor) but a 10kVA is bigger than the system needs. Common on mid-size off-grid cabins and shop builds with a generator backup.
Up to three in parallel for ~12kW continuous on bigger jobs. Five-year Victron warranty.
