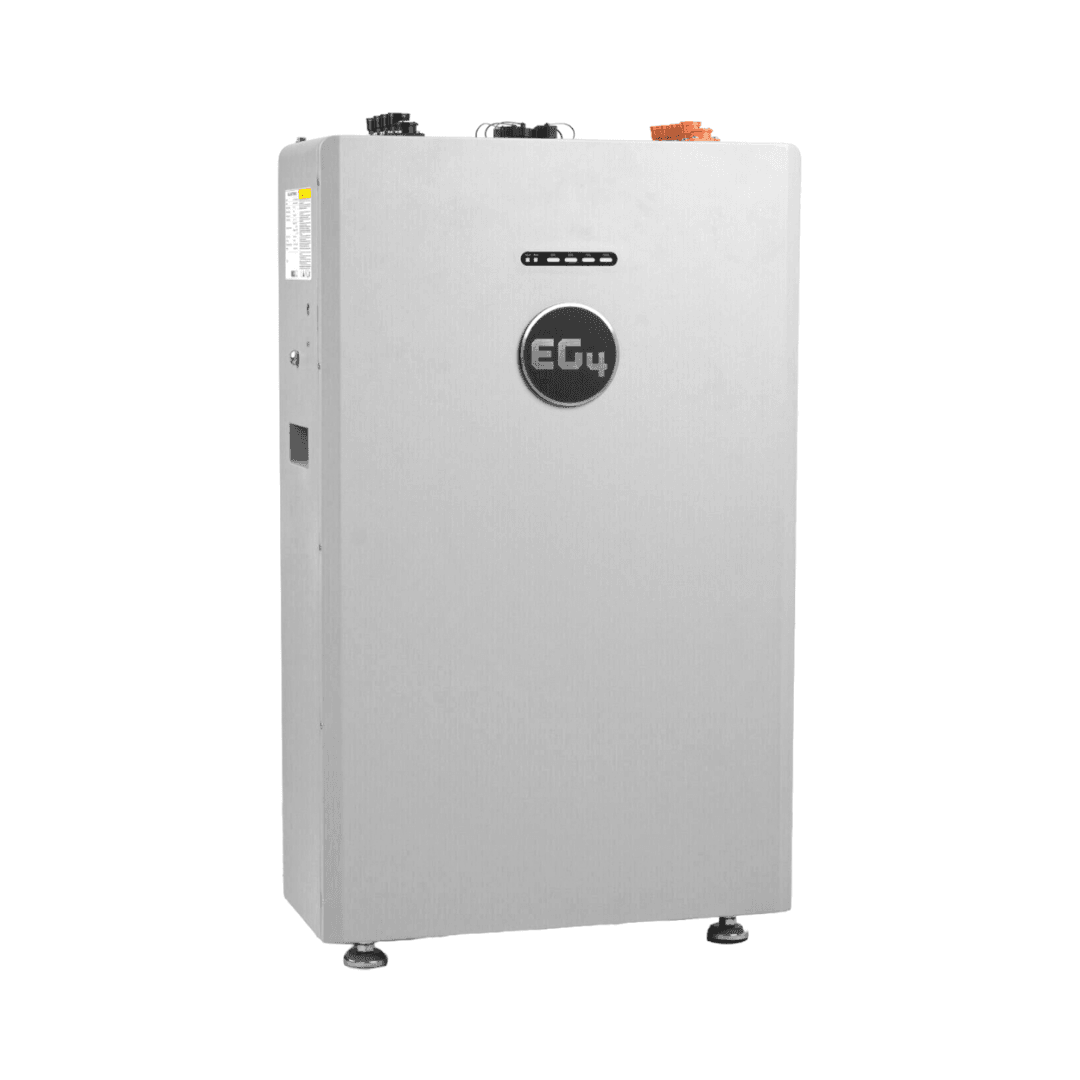

16kWh Outdoor WallMount Battery (48V 314Ah)
16kWh of lithium storage built to live outside. The IP67 enclosure shrugs off rain, dust, and a hose-down, and internal heaters keep it working through a cold snap. Smart BMS, Bluetooth and Wi-Fi monitoring, and parallel support up to 32 units when you need more.
- Comms
- Bluetooth, Wi-Fi, CAN/RS485
- Voltage
- 48V
- Capacity
- 16 kWh
- Warranty
- 10-year limited
- Amp hours
- 314 Ah
- Chemistry
- LiFePO4
Storage that mounts outside.
The EG4 AllWeather WallMount Battery is a 48V LiFePO4 battery that holds 16kWh in a single 314Ah unit. The whole thing is rated IP67, so it bolts to an exterior wall and stays there, no battery closet or conditioned room needed. Internal heaters keep the cells in their working range through cold weather, and the smart BMS handles balancing and protection on its own.
16kWh in one box
314Ah of usable LiFePO4 storage for whole-home backup, time-of-use shifting, or off-grid runtime.
Built to live outside
IP67 enclosure keeps out dust and water, so you can wall-mount it on an exterior wall instead of finding indoor space.
Cold-weather heaters
Internal heaters bring the cells up to temperature so the battery still charges and discharges when it gets cold.
Smart BMS onboard
Active cell balancing, protection, and state-of-charge tracking handled by the EG4 management system.
Monitor from your phone
Bluetooth and Wi-Fi let you check the battery and push firmware updates through the EG4 app.
Parallel up to 32
Start with one and add more. Auto-addressing in closed-loop comms keeps the install simple as the bank grows.
This is the battery we reach for when there is no good indoor spot for storage. It suits residential and light commercial solar-plus-storage jobs, off-grid builds, and backup power setups that need real capacity. It runs UL 9540 with the EG4 FlexBOSS18 and FlexBOSS21, so it slots straight into those systems.
