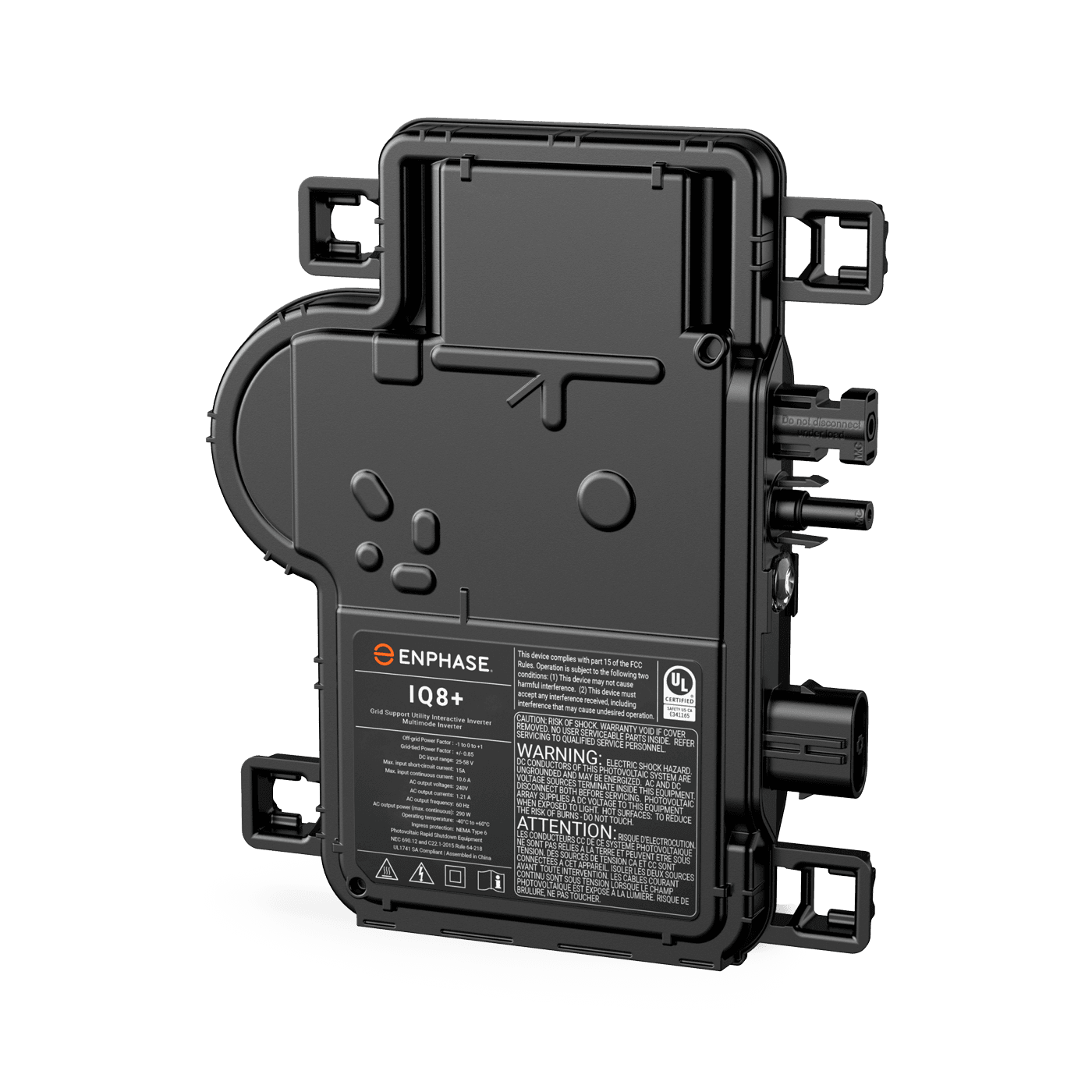

Enphase IQ8+ Microinverter
The IQ8+ is Enphase's per-module microinverter. One inverter per panel, mounted on the racking under the module, with AC output sent over a single trunk cable down the row. The benefit a string inverter can't match: a shaded panel or a failed bypass diode doesn't drag the rest of the string down, and every module reports its own production through the Enphase app.
- Type
- Module-level AC microinverter
- Mounting
- Standard solar racking
- Warranty
- 25-year Enphase
- Ac output
- 240V split-phase
- Grid forming
- Yes (with IQ System Controller 3 + IQ Battery 5P)
- Communication
- Trunk cable to IQ Combiner 5C
About this product
The IQ8+ is Enphase's per-module microinverter. One inverter per panel, mounted on the racking under the module, with AC output sent over a single trunk cable down the row. The benefit a string inverter can't match: a shaded panel or a failed bypass diode doesn't drag the rest of the string down, and every module reports its own production through the Enphase app.
Spec'd for modules in the 290W to 460W STC range, which covers most current residential panels. AC output is 240V split-phase. The IQ8 family supports grid-forming behavior when paired with an IQ System Controller 3 and IQ Battery 5P, which means the array can keep producing in a grid outage instead of shutting down with the grid.
Mounts on standard solar racking. Cabled through the IQ trunk cable system to the IQ Combiner 5C. 25-year Enphase warranty. The right choice when the install is going Enphase end-to-end, or when an existing roof has shading or mixed module orientations that defeat a string-inverter design.
More Microinverters

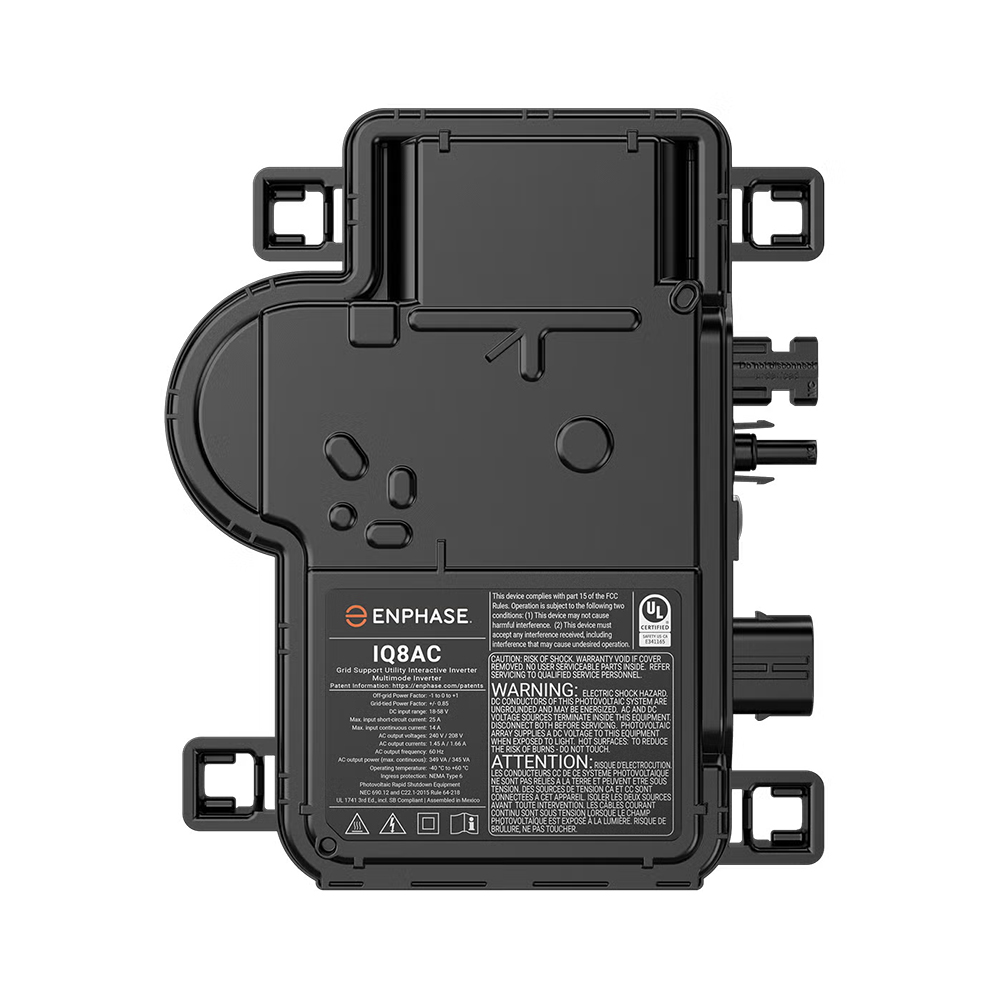

Enphase IQ8AC Microinverter
The IQ8AC is a higher-output microinverter that pairs with modules from 295 to 500 watts and runs on either 240V split-phase or 208V service. It does its DC-to-AC conversion at the panel and supports grid-forming, so the array can produce during an outage with the right controller. Suited to homes and light commercial sites with larger panels, including the 208V wiring common in multifamily buildings.
$223

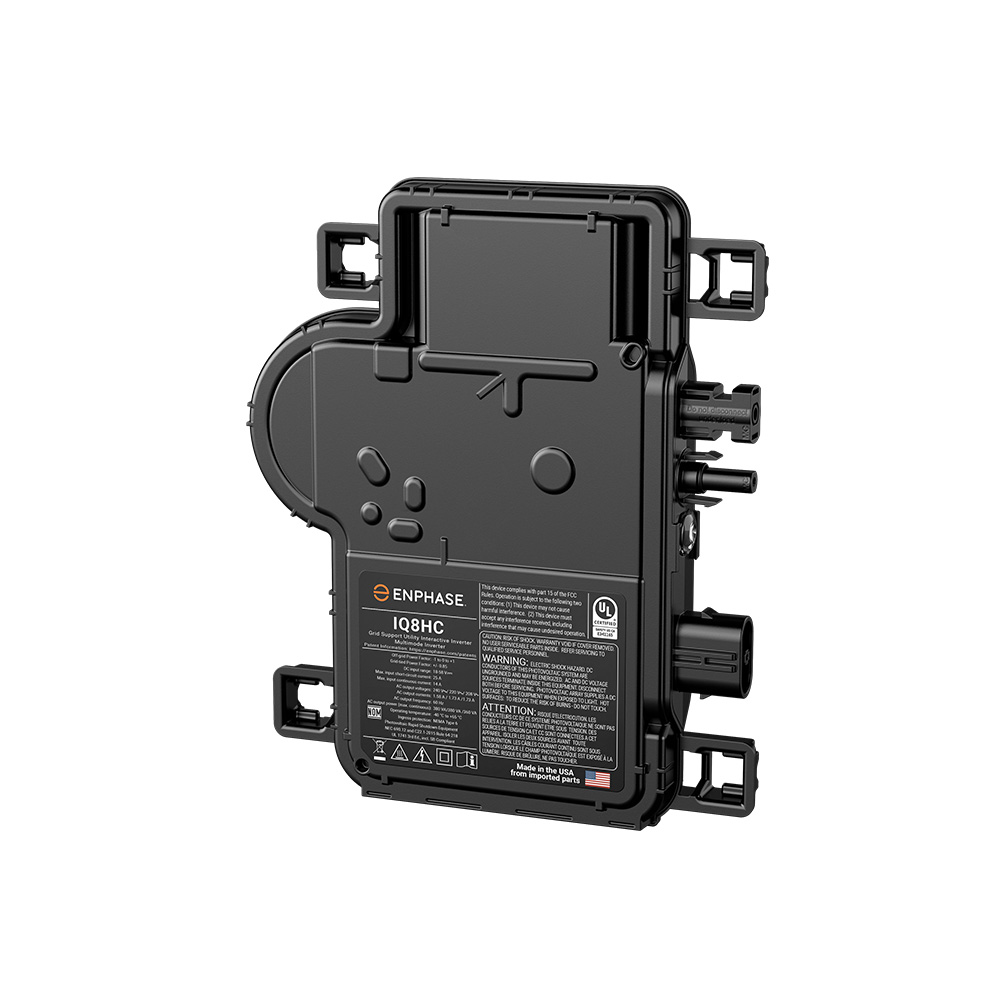

Enphase IQ8HC Microinverter
The IQ8HC is Enphase's high-output microinverter, built to pair with today's bigger panels in the 320 to 540 watt range. It turns the DC from a single module into grid-ready AC right on the roof, and because it is grid-forming it can keep producing during an outage when paired with the right Enphase controller. A solid pick for high-wattage modules where you want panel-by-panel performance and monitoring.
$226
Enphase IQ8M
The IQ8M is a mid-range microinverter for standard residential modules in the 260 to 460 watt range. It converts each panel’s DC to 240V split-phase AC on the roof, runs grid-tied or off-grid, and keeps making power during an outage with the right Enphase controller. A good match for a typical home rooftop array where you want per-panel output and the option to add batteries later.
$196
