Eaton CSR Main Breaker 200A 2P 120/240V
This is the Eaton CSR2200N, a 200A two-pole main breaker rated 120/240V with a 25 kA interrupt rating. It is the service-entrance main breaker the EG4 GridBOSS needs to hit its 200A service rating. Thermal-magnetic, plug-on mount, and UL listed.
In stock and ready to ship.
5.036 Google reviews- Type
- Eaton CSR, thermal-magnetic, plug-on
- Poles
- 2
- Listing
- UL listed
- Voltage
- 120/240 VAC
- Amperage
- 200 A
- Wire capacity
- 2 AWG to 300 kcmil
About this product
This is the Eaton CSR2200N, a 200A two-pole main breaker rated 120/240V with a 25 kA interrupt rating. It is the service-entrance main breaker the EG4 GridBOSS needs to hit its 200A service rating. Thermal-magnetic, plug-on mount, and UL listed.
More Breakers
50A Breaker
A 50A AC circuit breaker sized for the EG4 12kPV inverter's AC backup output. Drops into a standard 240V load-center slot. UL listed for residential AC service. Use this when wiring the 12kPV's backup output to a sub-panel and you need a code-correct breaker between the inverter and the panel.
$39

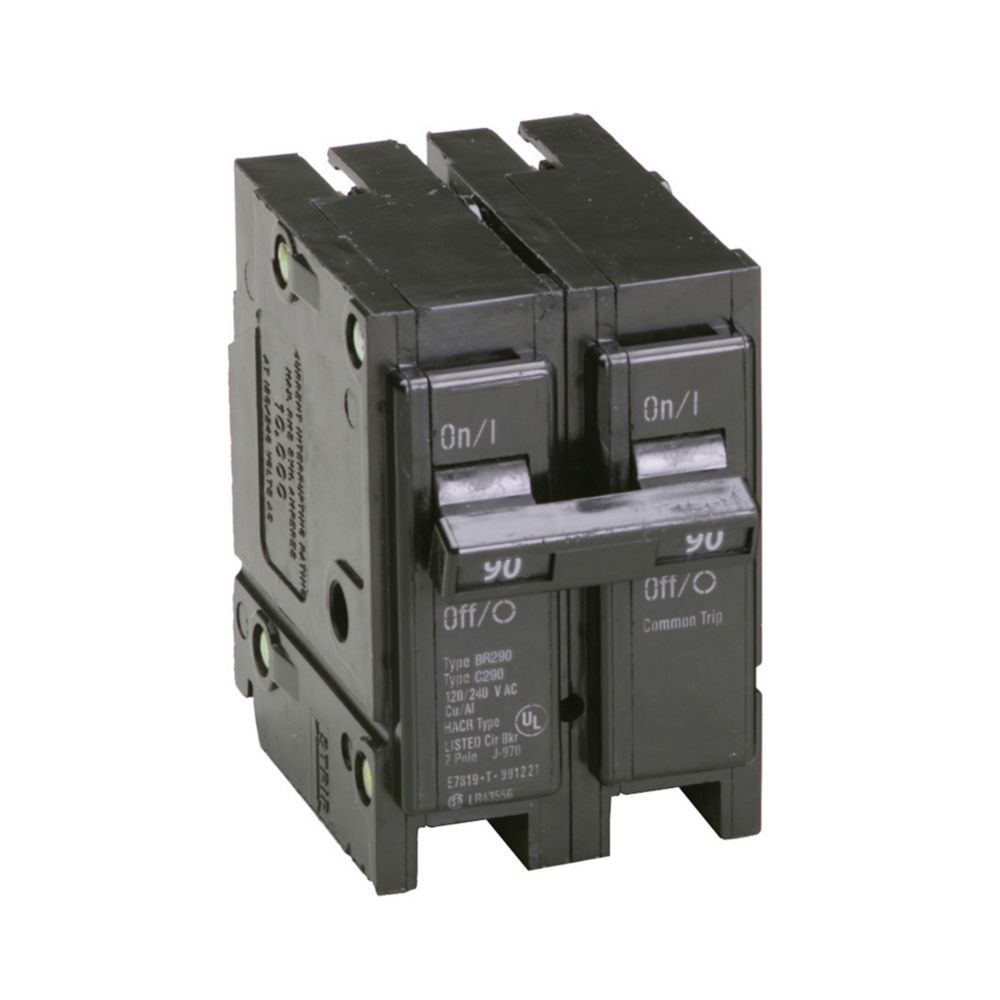

90A Breaker
90A Eaton circuit breaker. Used in solar system AC subpanels or main lugs where the design current calls for a 90A rating. Confirm your panel takes Eaton-format breakers before ordering.
$50
