Whole-Home Backup

Build your whole-home backup system

Run EG4 FlexBOSS inverters with a GridBOSS to tie your grid, generator, and backed-up loads together, or let a single 18kPV carry the whole house on its own 200A pass-through. The engine checks every connection live.

Monthly power bill

$150≈ 12 kW array

Panelspick a panel first

Mount

Solar panels

Pick the panel that fits your roof. Large-format 500W+ modules usually go on a ground mount.

Show the large-format ground-mount panels (500W+) here too. They are bigger and heavier than typical roof panels, so a tech confirms the roof can take them before anything ships.

I already have panels. Use mine instead: the kit leaves the panels out, and the compatibility checks run on the numbers you type from the label on the back of your panel (or its datasheet).

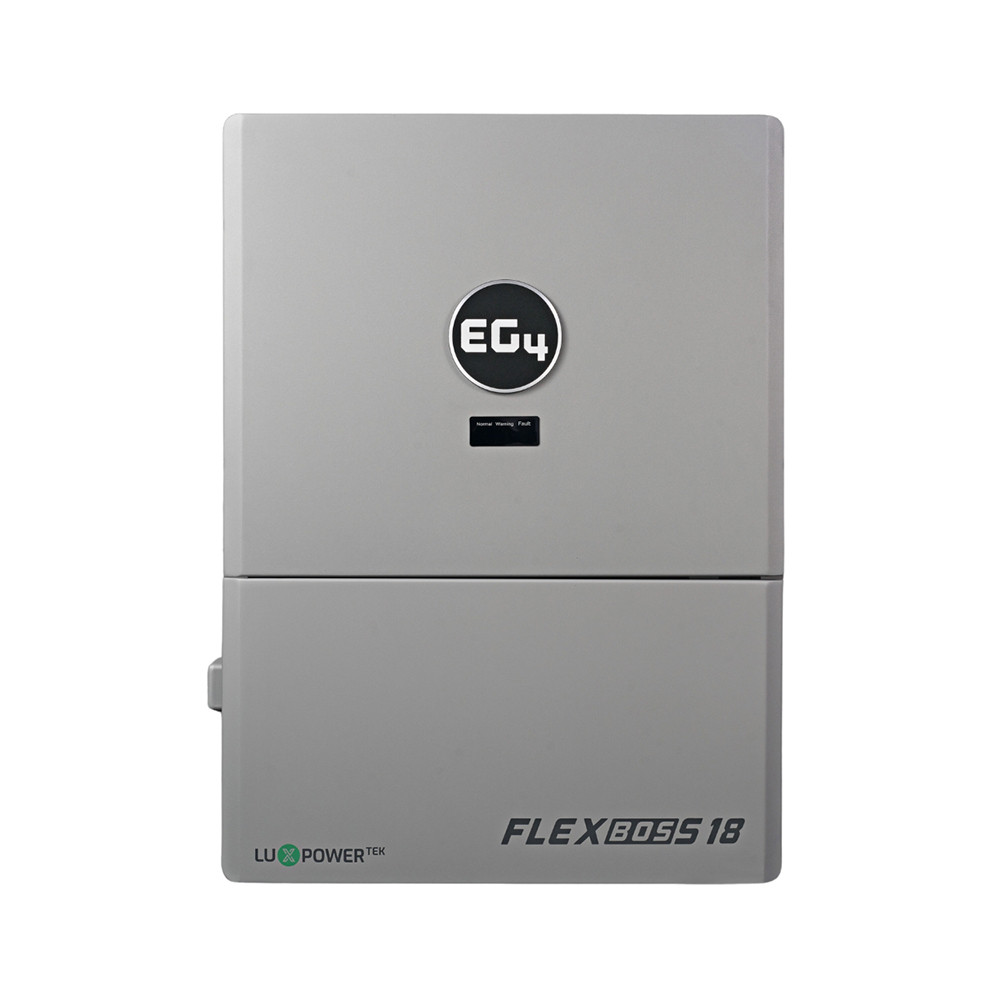

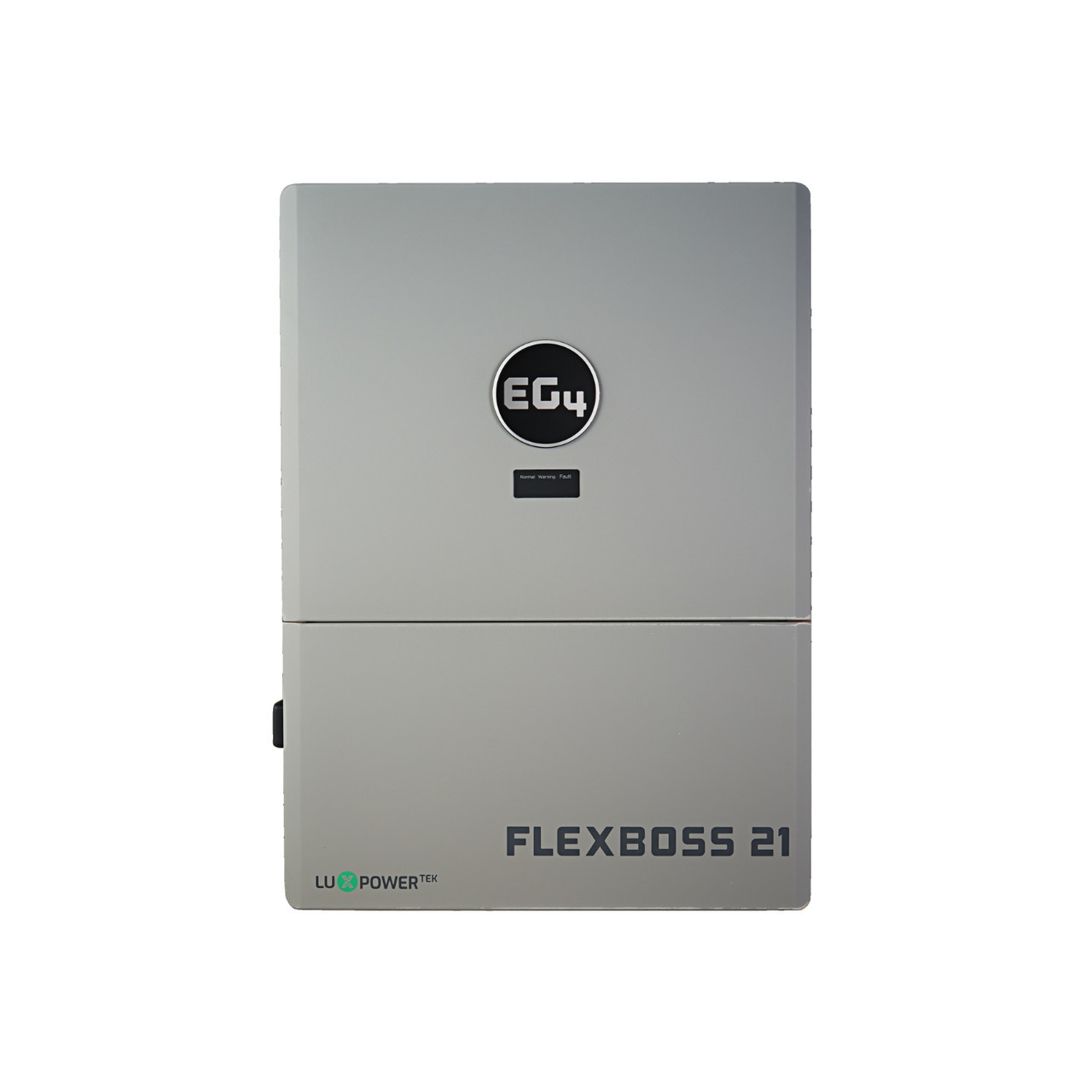

Hybrid inverters

FlexBOSS pairs with the GridBOSS, up to 3 in parallel. The 18kPV can also back up the whole home on its own 200A pass-through.

Batteries

LiFePO4, 48V class. Size to the loads you want to back up.

I'm supplying my own battery. Leave it out of the kit. (Must be a 48V LiFePO4 bank; a tech confirms the pairing.)

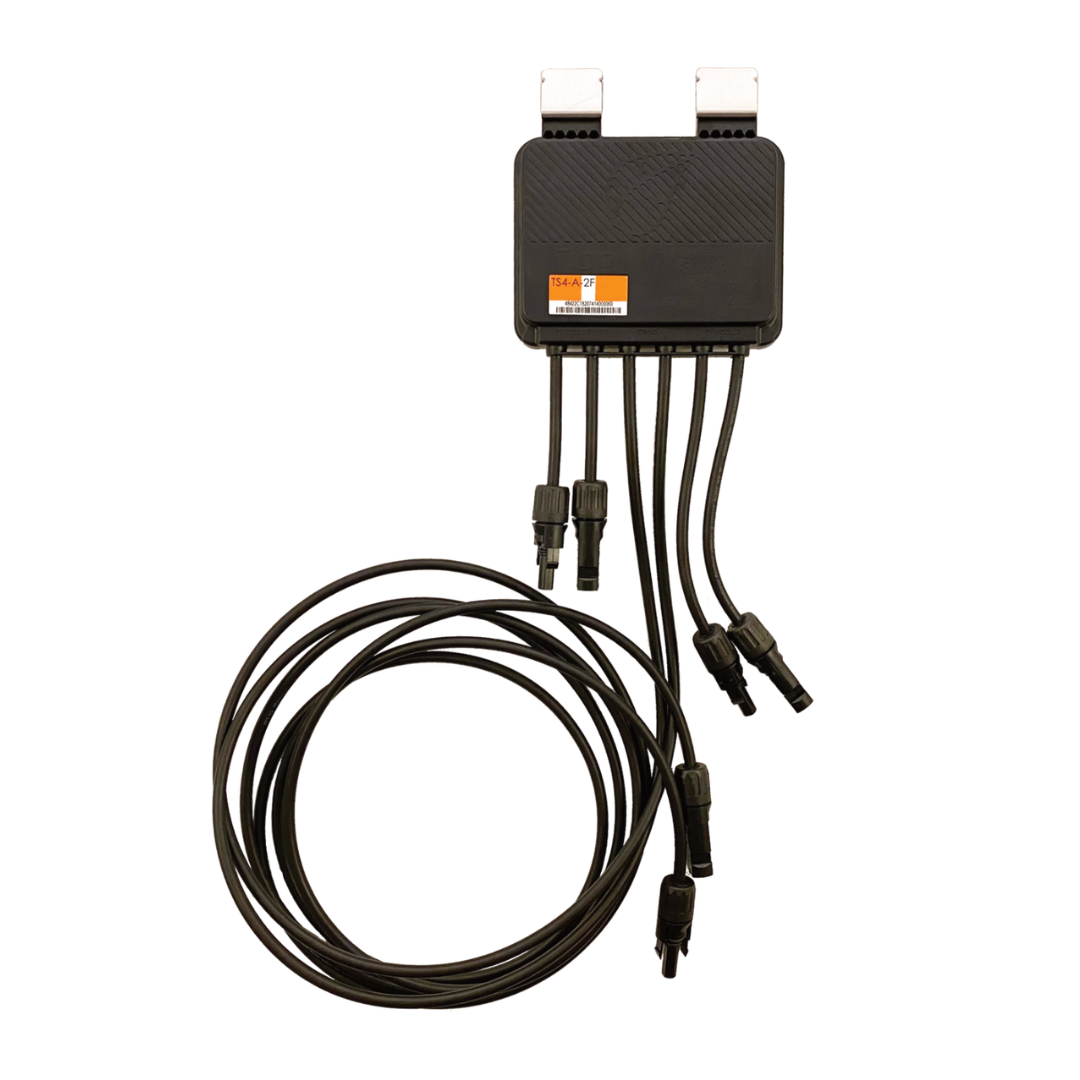

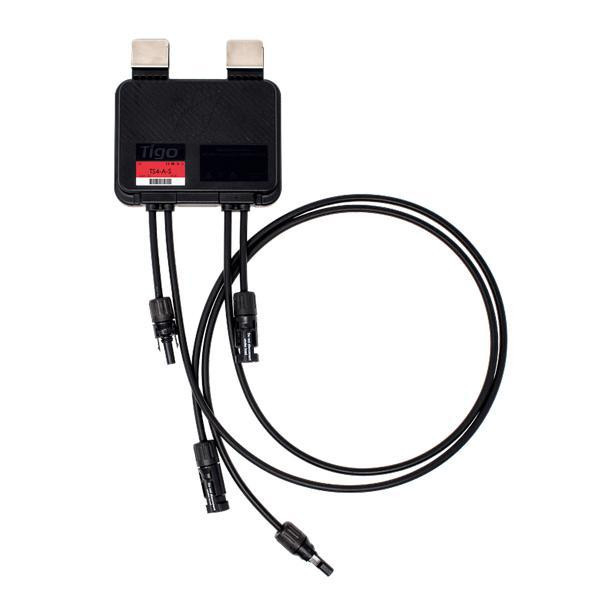

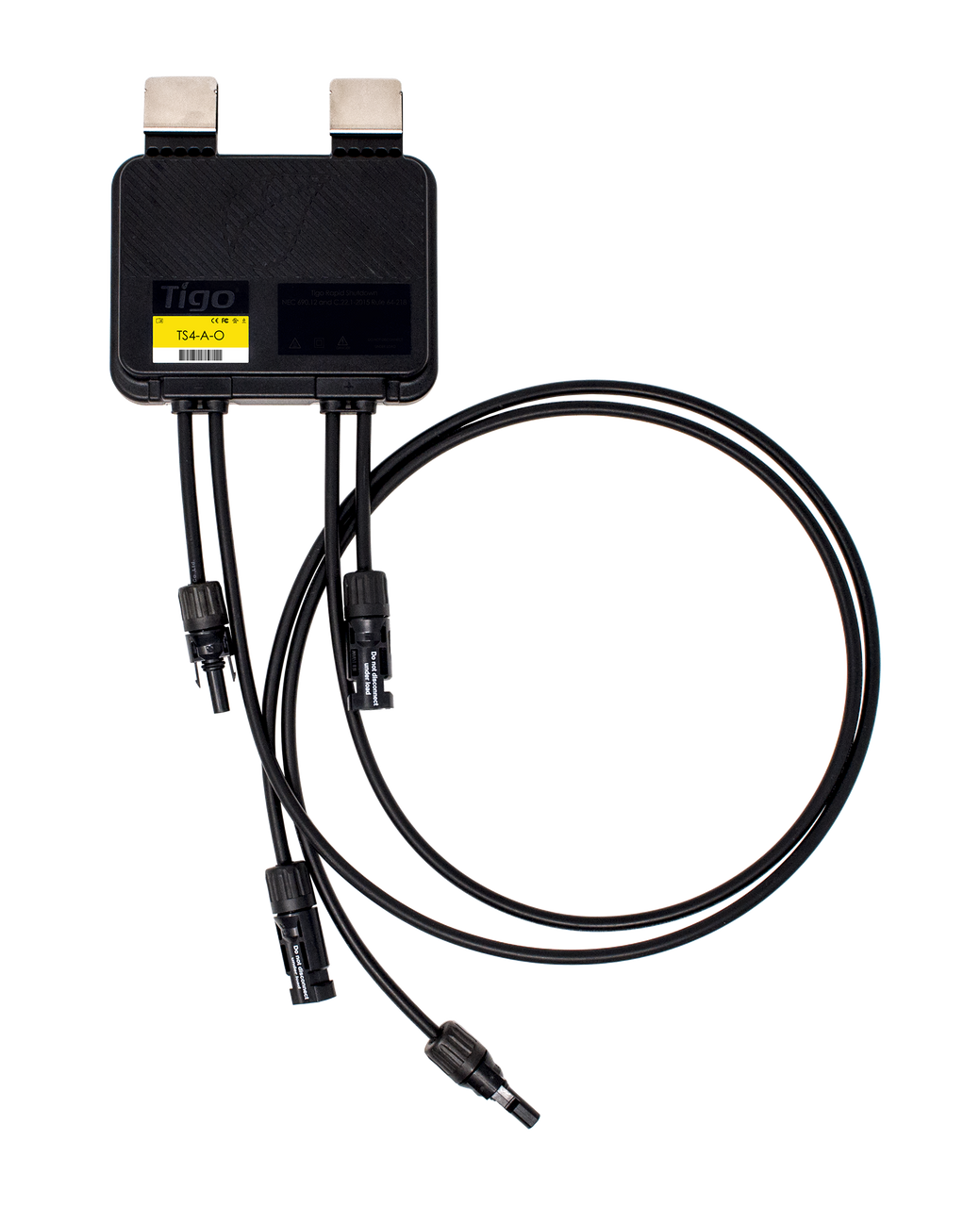

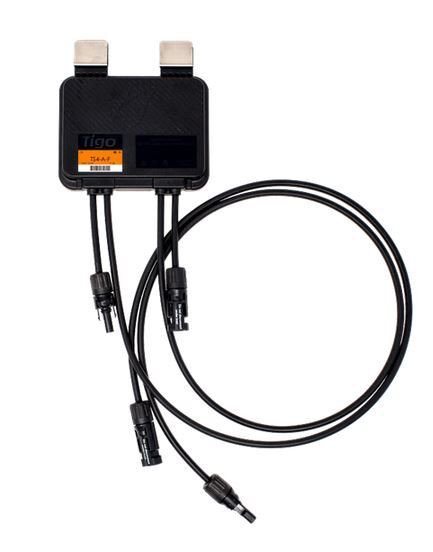

Rapid shutdown

NEC 690.12 fire-safety cutoff, required on rooftop arrays. Pick how much the panel-level units do beyond the shutdown itself.

I'm handling rapid shutdown separately. Leave the RSD units out of this kit. (NEC 690.12 still requires rapid shutdown on rooftop arrays and the inspection will look for it. A tech confirms your shutdown plan before anything ships.)

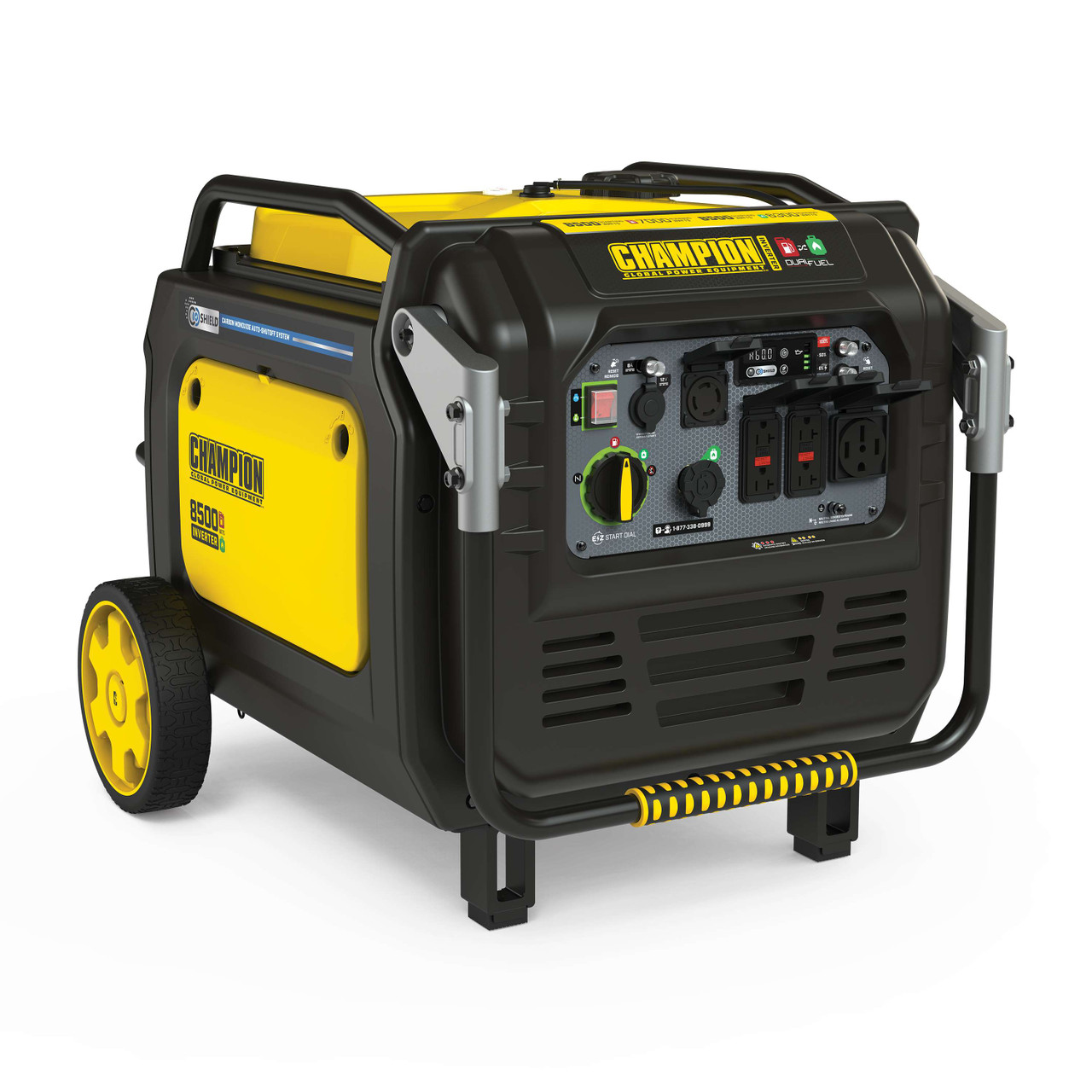

Backup generator (optional)

Feeds the system's generator input for backup power. Clean sine wave inverter generators only (under 3% THD); a conventional generator's rough power upsets the inverter's AC input. Added to your kit total; pick it again or hit the ✕ under Your system to take it back out. Hookup ratings get field verified by your tech.

Your build, live

Pick a solar panel to begin.

Single-line diagram

Pick a panel, inverter, and battery to see the wiring diagram update live.

Your system

Panel

Not yet picked

FlexBOSS

Not yet picked

Battery

Not yet picked

Rapid shutdown

Not yet picked

GridBOSS

GridBOSS MID v3.1 200A

1 bundled

Your array

—

panels

—

series strings

inverters (parallel)

—

array size

Compatibility checks

✕Rooftop arrays need a rapid-shutdown device (NEC 690.12).
✕This system runs on a battery bank. Pick a battery, or tick "I am supplying my own battery" to leave it out.

Your kit

GridBOSS MID v3.1 200A
grid interconnection and load management
1 each
$1,800

Estimated kit total$1,800

Sample pricing from the live catalog. Wire and small parts estimated from the panel count; a tech confirms the full list before it ships.

Build type: whole-home · engine v0.6 · catalog rows: 69

Estimated kit$1,800
